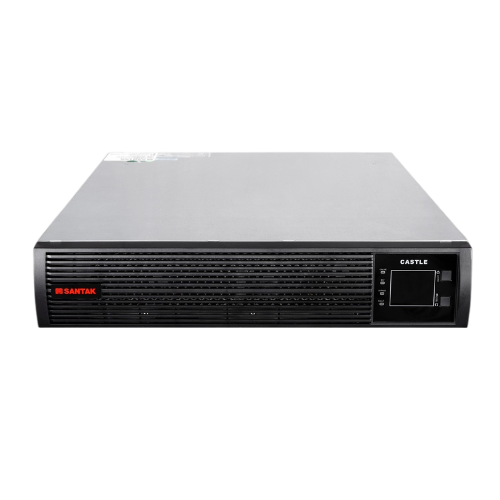

Santak Rack 1K Online UPS (24 V)

- Power rating: 1 kVA

- Input

+ Input Voltage Range: (110-300)VAC

+ Frequency Range: 40-70 Hz

+ Input Power Factor: ≥0.98

- Battery and charger

+ Tegangan Pengenal Baterai: 24 V

+ Type: Maintenance-free Sealed Lead-acid UPS Batteries

+ Number of Internal Battery: 2PCS

+ Recharge Current: 1 A

- Output

+ Nominal Output Voltage: 220*(1±2%)VAC

+ Frequency Range: sync with line of +/-4Hz(Line mode) 50±0.05Hz (Battery mode)

+ Output Power Factor: 0.9@30°C and 0.8@40°C

+ Overload capacity: 105%-150%，47s-25s；150%-200%，25s-300ms；>200%，200ms (0.8PF)

+ Outlet: IEC C13*6 pcs - Waktu Transfer + Battery Mode<-->Inverter Mode: 0ms

+ Inverter Mode<-->Bypass Mode: 4ms (typical)

- Backup time (80% load, 0.8PF): >4.5 mnt

- Indicator:

+ LED: Load, battery capacity, UPS working mode

- Alarm

+ Battery Discharge: Battery full: 1buzzing/4s; Battery empty: 1buzzing/1s

+ Alarm UPS: Buzzing continue

- Auto restart: Auto restart while mains recover

- Interface

+ USB: Monitoring

+ Optional Parts: NMC Card, Modbus Card, Relay Card

- Environment

+ Temperature: 0°C-40°C

+ Humidity: 0-95%, non-condensing

- Net Weight

+ UPS: 11 kg

- Dimension (W*D*H)

+ UPS: 438*420*87mm
