Schloeder SESD 230 ESD-Simulator (30kV; 150pF; 330 Ohm)

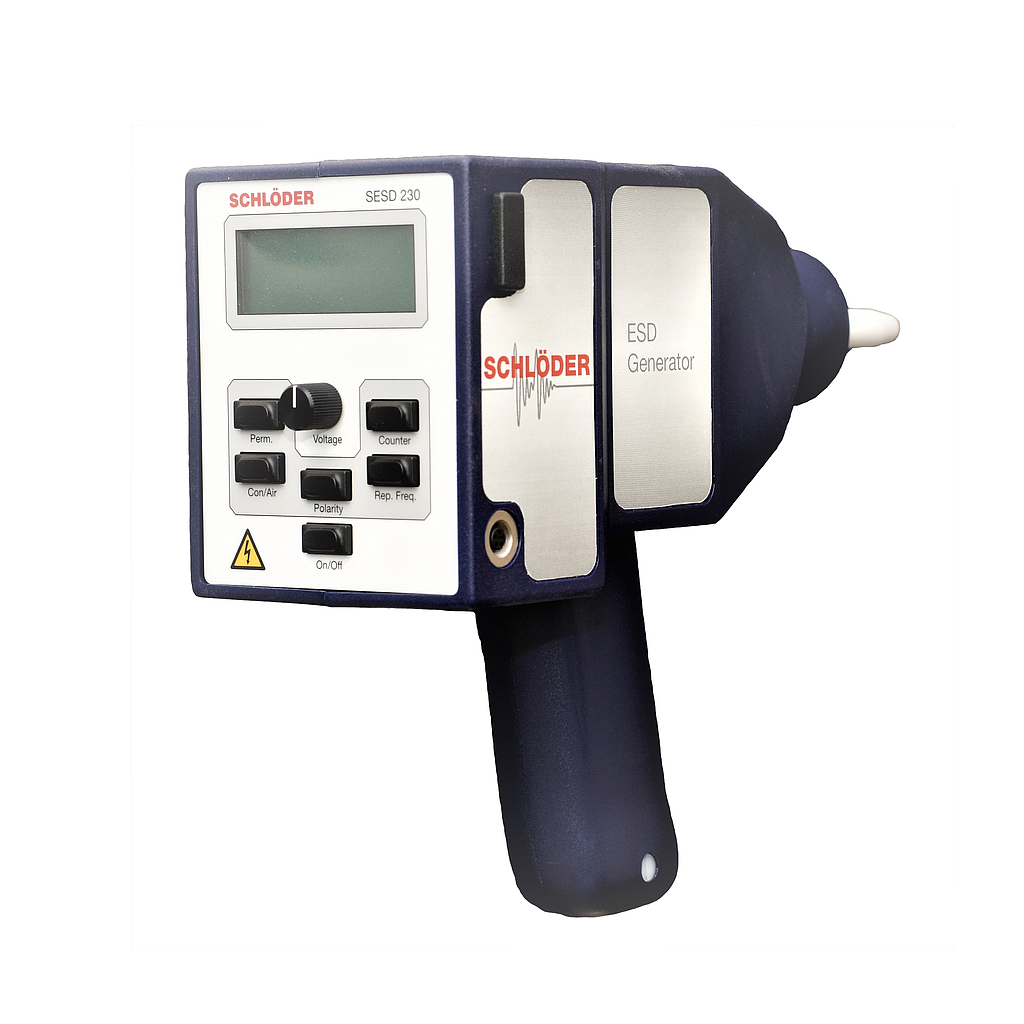

SESD Simulator 230

Output voltage: adjustment via digital potentiometer

Test modes: air and contact discharge

Air discharge: 0.5 kV to 30 kV, 100 V steps

Contact discharge: 0.5 kV to 30 kV, 100 V steps

Polarity of the output voltage: positive and negative

Repetition frequency

Air discharge: single pulse or repeated

Contact discharge: single pulse, 0.1 Hz, 0.2 Hz, 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz

Continuous operation: possible at air and contact discharge

Holding time: ≥5 sec

Pre selectable counter: 1 - 9999

Discharge electrodes: in conformity to IEC / EN 61000-4-2

Energy storage capacity: 150 pF ± 10%

Discharge resistor: 330 Ohm ± 5%

Operation temperature range: 0 - 40° Celsius

Relative humidity: 0 - 60 %

Weight: app. 1470 g

SESD Simulator 230 Power Supply

Power Supply: IN: 100-240 VAC/47-63 Hz; OUT: 9 VDC / 3 A

Weight: app. 200 g

Details

Options

SESD 3025 Test tip, 30 mm diameter, for air discharge > 15 kV

SESD 3026 Test tip, length 50 mm with spring pin, for contact discharge

SESD 3027 Test tip, length 70 mm with spring pin, for contact discharge

SESD 271 VCP – vertical coupling plate, include earth cable SESD 272

SESD 272 Earth cable include 2 x 470 kOhm resistor, 2 m long

SESD 8800-4 ESD verification set 2 Ohm (4 GHz) to verify the ESD pulse

SESD 30 S120 Remote control software and optical fiber set
