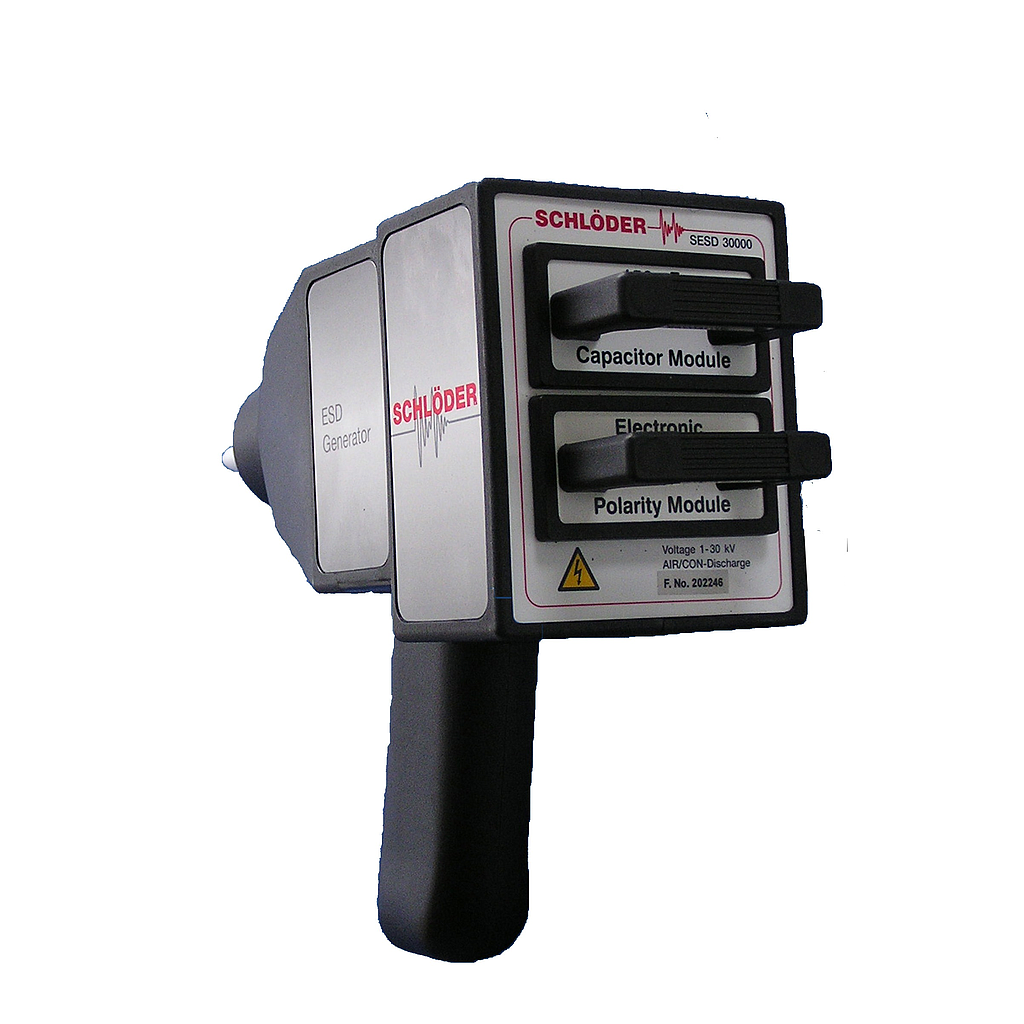

Schloeder SESD 30000 ESD-Simulator (30kV; 150pF; 330Ω)
Manufacturer: Schloeder Model: SESD 30000 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
SESD Generator 30000
Output voltage: adjustment via digital potentiometer
Mode: air and contact discharge
Air discharge: 1 kV up to 30,0 kV in steps of 100 V
Contact discharge (with contact control): 1 kV up to 30,0 kV in steps of 100 V
Polarity of the output voltage: positive and negative
Repetition frequency
Air discharge: single or multiple pulses
Contact discharge: single pulse, 0.1 Hz, 0.2 Hz, 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
Continuous operation: at air discharge and contact discharge
Pre-selection counter: 1 - 9999
Standard Impedances: 150 pF / 330 Ω (IEC / EN 61000-4-2)
Other impedances: see options
Probes: acc. IEC / EN 61000-4-2
Operation temperature range: 0 - 40° Celsius
Relative humidity: 0 - 60 %
Weight: appr. 1500 g
Desktop Control Unit
Power supply: 85 - 264 VAC, 47 - 63 Hz
Power consumption: < 50 VA
Weight: appr. 1450 g
Options
SESD 30 Battery Retrofitting existing SESD 30000 to increase mobility
SESD 30 Battery N Retrofitting existing SESD 30000 to increase mobility, for new device only
SESD 30 C xxx Capacity module (values up to 1000 pF)
SESD 30 Rxxx Resistor module (values (0) 50 Ohm up to > 5 kOhm)
SESD 30 P200 Electronic polarity module
SESD 30 M200 Faster discharging module (rise time typically 0,45 ns)
SESD 30 S120 Optical set and remote software
SESD 30 Z 02 Special module with HV connecting cable for electro-explosive device testing
SESD 30 MOD-1 HBM-Modul 100 pF / 1500 Ohm mit Anstiegszeit > 5 ns
SESD 30 MOD-5 „Beep“ sound
SESD 30 MOD-1-U2 Modified SESD 30000: for option HBM (new calibration necessary!)
SESD 30 MOD-3-U3 Modified SESD 30000: to provide a TTL trigger signal at
the BNC connector. Delay of the SESD signal approx. 2-10 ms, jitter 2 ms
SESD 30 MOD-3-U1 Modified SESD 30000: for automatic absorption
(additional calibration has to be quoted)
SESD 271 VCP – vertical coupling plate, include earth cable SESD 272
SESD 272 Earth cable with 2 x 470 kΩ resistors, 2 m long
SESD 3025 Test tip, diameter 30 mm, for AIR discharge > 15 kV
SEDS 3026 Test tip, length 50 mm with spring pin, for automatic tests with contact discharge
SESD 3027 Test tip, length 70 mm with spring pin, for automatic tests with contact discharge
SESD 3036 Hook for use on a support arm
SESD 30 T 1000 Support arm with balancer
SESD 8800-4 ESD verification set 2 Ohm (4 GHz)
