Gross Weight*: 13.70 lb
*The weight listed is gross product weight including standard packaging, actual shipment weight may vary.
Continuity Measurement Range:0 to 1 x 10^7 ohms
Resistance Measurement Ranges:
1 x 10^5 to 1 x 10^11 ohms @ 10 Volts, complies with ANSI/ESD S4.1
1 x 10^5 to 1 x 10^11 ohms @ 100 Volts, complies with ANSI/ESD S4.1
Measurement Accuracy (@ 18 to 28 ºC, R.H. up to 90%):±5%/ ±2º of arc
Continuity Circuit Internal Resistance:500 ohms
Power Supply:1 - 1.5 V AA cell
1 - 3.6 V AA cell lithium
Display: Analog
Operating Temperature: 41ºF to 85ºF (5ºC to 30ºC)
Environmental Requirements:
Indoor use only at altitudes less than 6500 ft. (2 km)
Maximum relative humidity of 80% up to 85°F (30°C)
Dimensions(meter):4.6" x 3.3" x 1.8"(117 x 84 x 46 mm)
Dimensions (electrode):2.5" (64 mm) diameter x 4.7" (119 mm) height
Weight (meter with batteries):12 oz (340 g)
Weight (electrode):5 lbs (2.27 kg) each
Certifications: CE
Country of Origin: United States of America
Lightweight, user-friendly Analog Surface Resistance Megohmmeter
Two different test scales and settings for testing both surface-to-ground (Rtg) and surface-to-surface (Rtt) resistance
Color-coded number scales help identify ideal resistance ranges

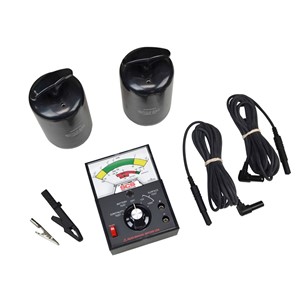

Kit contains:
1 Megohmmeter
2 Test Weights (5 lbs. each)
2 Test Leads (10 ft. each)
1 Insulated Bulldog Clip
1 Alligator Clip
1 Continuity Test Plate
2 Batteries (3.6V and 1.5V)
1 User Guide
1 Molded Carrying Case
NIST Calibrated – Original Calibration Certificate can be Downloaded Here
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of SCS products, see Calibration.
