Gross Weight*: 13.15 lb
*The weight listed is gross product weight including standard packaging, actual shipment weight may vary.
Resistance Ranges:
1 x 10^3 to 1 x 10^6 ohms @ 10 Volts, complies with ANSI/ ESD S4.1
1 x 10^6 to 1 x 10^12 ohms @ 100 Volts, complies with ANSI/ESD S4.1
Resistance Accuracy: (23ºC, 40% R.H.)
*Resistance measurements within ±10% (±20% accuracy for 5 x 103 ohms and lower and 1 x 1012 ohms and greater), complies with ANSI/ESD S4.1. Under load voltages of 10 Volts ±5% and 100 Volts ±5% exceeds requirements of ANSI/ESD S4.1
Temperature Accuracy: ±5º C
Relative Humidity Accuracy:±10%
Power Supply: 4 AA alkaline batteries
Battery Life Approximately: 1,500 measurements
Display: OLED, 2.7" diagonal, 128 x 64 pixel resolution
Memory Capacity: 100 measurements
Operating Temperature: 41ºF to 85ºF (5ºC to 30ºC)
Environmental Requirements:
Indoor use only at altitudes less than 6500 ft. (2 km)
Maximum relative humidity of 80% up to 85°F (30°C)
Dimensions (meter):3.94" x 8.27" x 1.26" (100 mm x 210 mm x 32 mm)
Dimensions (carrying case): 15.0" x 14.5" x 3.5"(381 mm x 368 mm x 89 mm)
Weight (meter with batteries):0.9 lbs (0.4 kg)
Weight (populated carrying case):13.0 lbs (5.9 kg)
Country of Origin: United States of America
Large OLED Display
Displays resistance mantissa and exponent, temperature, relative humidity and test voltage
Internal Memory
Stores and recalls up to 100 measurements. Captures resistance, temperature, humidity and test voltage.
Measurement Stability Modes
Sets the 15-second electrification period for test requirements*
Electrode Spacers
Spaces the 5 lbs. electrodes to 10 and 36 inches for resistance point-to-point (Rtt) measurement requirements of ANSI/ESD S.1 and ANSI/ESD S4.1
Measurement Location Labels (Pack of 25)
Labels and tracks areas and materials measured for surface resistance

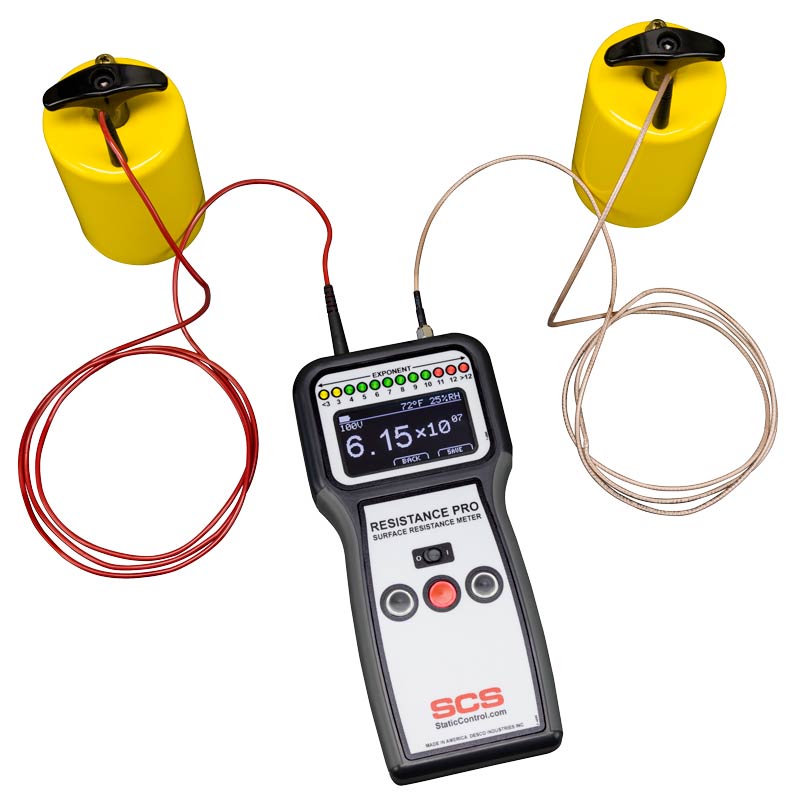

Digital Compliance Verification Surface Resistance Meter Kit
Measures resistance point-to-point (Rtt) and resistance-to-ground (Rtg) of worksurfaces, flooring systems, garments, packaging, and other materials in accordance with ESD Association documents: ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, ANSI/ESD STM97.1 and others
Resistance Range: 1.0 x 103 to 1.0 x 1012 Ohms
Determines if a surface is conductive, dissipative or insulative for ESD control applications in electronics manufacturing or handling environments
Under Load Test Voltages (10V or 100V ±5%)
Meets ANSI/ESD S20.20 resistance testing requirements for product qualification and compliance verification
770007 Concentric Ring Probe Accessory
Measures surface resistance per ANSI/ESD STM11.11 and volume resistance per ANSI/ESD STM11.12 of planar material
770765 Handheld Electrode Accessory
Meets resistance measurement requirements of TR53, ANSI/ESD STM97.1 and other documents
NIST Calibrated – Original Calibration Certificate can be Downloaded Here
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of SCS products, see Calibration.
Made in the United States of America
This item is made and stocked in Chino, CA
Kit Includes:
1 Digital Surface Resistance Meter
2 Test Leads, 5' Length
2 5 lbs. Electrodes
1 Electrode Spacer, 10"
1 Electrode Spacer, 36"
4 AA Alkaline Batteries
1 Ground Plug Adapter
1 Gator Clip
25 Measurement Location Labels
1 Plastic Carrying Case
1 Certificate of Calibration
*Measurement Stability Modes:
Auto Stabilization enables a 15-second electrification period when the measured resistance is 1 x 1010 ohms or greater to maintain test accuracy.
Fixed Stabilization complies with ANSI/ESD S4.1 and enables a 15-second electrification period when the measured resistance is 1 x 106 ohms or greater.
