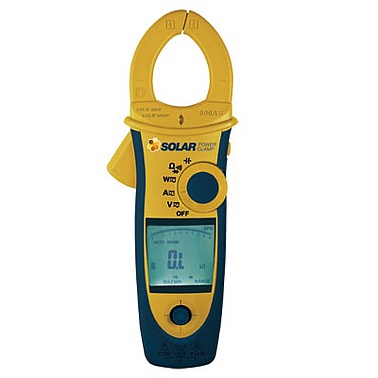

Seaward SOLAR Solar Power Clamp (AC/DC 600A)

Active Power

Function Range Accuracy

ACW / DCW 0.000kW – 599.9kW A, error*V, reading + V, error *A, reading

Voltage

Function Range Accuracy

DCV 0.00A – 999.9V ± (0.7% + 2dgt)

ACV 0.00 – 999.9V ± (1.0% + 5dgt)

LPF (ACV) 0.00 – 999.9V ± (1% + 5dgt) @ 50Hz - 500Hz

± (5% + 5dgt) @ >60Hz - 400Hz

Resolution (all) 0.01 V

Current

Function Range Accuracy

DCA 0.00A – 99.99A ± (1.5% + 0.2 A)

100.0A - 599.9A ± (1.5% + 5dgt)

ACA 0.10A – 599.9A ± (1.5% + 5dgt) 50Hz - 60 Hz

± (2% + 5dgt) >60Hz - 500 Hz

LPF 0.10A – 599.9A ± (1.5% + 5dgt) 50Hz - 60 Hz

ACA ± (5% + 5dgt) >60Hz - 500 Hz

Peak Hold: Peak Max / Peak Min

Function Range Accuracy

ACV 140.0V ± (3.0% + 15dgt)

140.0V

ACA 140.0A ± (3.0% + 15dgt)

850A

Frequency

Function Range Accuracy

Frequency 20.00Hz - 9.999kHz ± (0.5% + 3dgt)

Total Harmonic Distortion

Function Range Accuracy

ACA /ACV 0.1 – 99.9% ± (3.0% + 10dgt)

Resolution 0.1%

Harmonic Order Range Accuracy

H01 ~ H12 0.1 – 99.9% ± (5% + 10dgt)

H13 ~ H25 0.1 – 99.9% ± (10% + 10dgt)

Resolution 0.1%

Inrush Current

Function Range Accuracy

ACA 0.00A - 99.99A ± (2.5 % + 0.2A)

100.0A - 599.9A ± (2.5 % + 5dgt)

Power Factor

Range -1.00 - 1.00

Resolution 0.01

Basic Accuracy ± 3°± 1dgt

Resistance, Continuity & Diode

Function Range Accuracy

Resistance 0.0Ω - 999.9Ω ± (1.0% + 5dgt)

1.000kΩ -99.99kΩ ± (1.0% + 3dgt)

Continuity 0.0Ω - 999.9Ω ± (1.0% + 5dgt)

Diode 0.40 ~ 0.80V ± 0.1V

Capacitance

Function Range Accuracy

Capacitance 0.000μF - 4000μF ± (1.9% + 8dgt)

Resolution 0.001μF max

General Specification:

Instrument Dimensions and Weight

Weight 0.45kg / 1.0lb

Dimensions 8.7 x 23.9 x 5.1 cm / 3.43 x 9.41 x 2.0 inch

Power Source Single 9V battery

Battery life ~ 100 hours (alkaline battery)

Safty :IEC 6101
