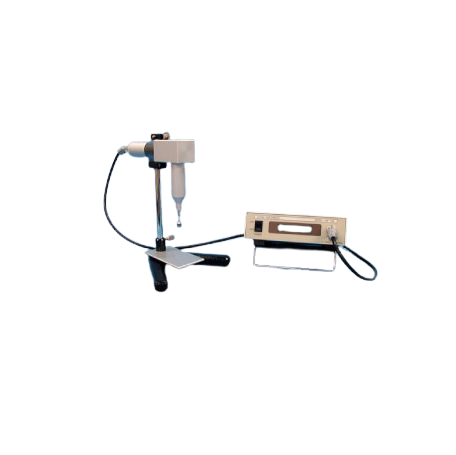

SEKONIC VM-10A Bench Type Viscometer (L/M/HM/H; 0.40～500 Pa.s, ±5%)

Measuring Method: Torsional Oscillation

Measuring Range

        L: 0.40～1,000 mPa.s

        M: 10～5,000 mPa.s

        MH: 0.50～30.0 Pa.s

        H: 10～500 Pa.s

Accuracy: ±5%(Reading) *Note 1

Repeatability: ±2%(Reading) *Note 1

Temperature Range: No thermometer

Calibrating method: Calibration with Standard Liquids for Calibrating Viscometers(JIS Z8809-2011)

Display viscosity: 3-digit display (Without decimal point)

System requirements: 10～40°C, 20～80%RH(Non condensation)

Analog output: No analog output

Digital output: RS-232C interface output

Power AC adapter: Output DC9V 2600mA; Input AC100～240V 50 / 60Hz 0.6A; AC Adapter, DC 6～9V

Weight and Dimensions

        Probe: PR-10, 36 × 220 × 170 [mm], About 0.6kg

        Controller: VM-10, W110 × H190 × D230 [mm], About 1.2kg

Components: Connecting Cable, Stand for measurement, AC adapter（UIA324-09）, Carrying case, Instruction Manual
