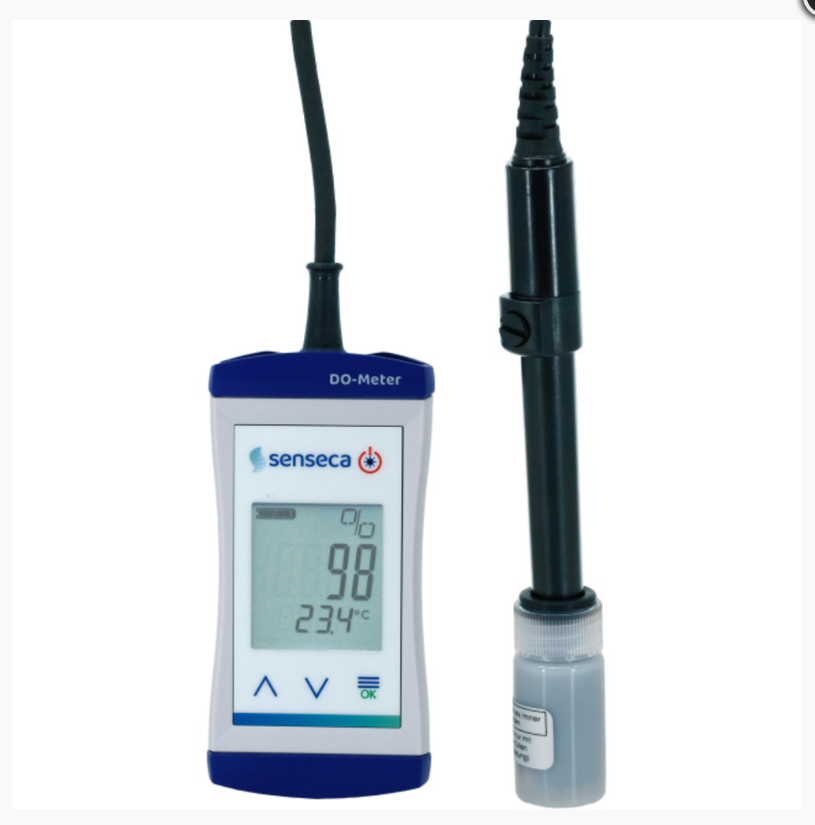

Senseca ECO 531 Waterproof dissolved oxygen meter (DO) with sensor (0.0..20.0 mg/l)

Accuracy:

Oxygen:

±1.5 % of measurem. Value ± 0,2 mg/l or

±1.5 % of meas. val. ± 2 % O2 saturation

Temperature: ±0.3 °C

Activation time T95:10 s at nominal temperature

Additional functions:Stability recognition, automatic adjustment to environmental air

CompensationTemperature : automatically with integrated temperature measurement

Air pressure : Compensation possible with manual input (normally not necessary)

Salinity : with manual entry

Connections:Galvanic sensor (active membrane type), KOH electrolyte 2 m or 4 m cable, permanently connected to the device, with integrated temperature sensor

Dimensions:108 x 54 x 28 mm (H x W x T) without sensor

Display:3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at the push of a button

Housing material:Break-proof ABS housing

Measuring range:0.0..20.0 mg/l (or ppm) O2 concentration

min. flow:30 cm/s (in standing water by stirring or moving the sensor up and down)

Operating conditions:-20.. +50 °C, 0..95 % r.H.

Power supply:2x AA battery, >3000 h battery life

Protection type:IP65 / IP67

Resolution:0..200 % O2 saturation

Sensor operating pressure:max. 3 bar (~30 m water depth)

Sensor range of application:0..60 °C

Weight:approx. 240 g (device incl. sensor)
