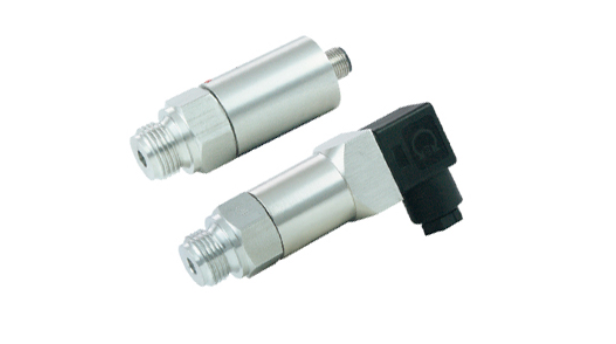

Senseca EPS1 Pressure transmitter (10...30 V DC ±10 %)

Measurement accuracy: ±1 % of final value; plus 0.05 %/K at < 0 °C and > 60 °C

Repeatability: ±0.5 % of full scale value

Media temperature: -20...+80 °C(with gooseneck option max. 120 °C)

Ambient temperature: -20...+70 °C

Storage temperature: -20...+80 °C

Media: fluids and gases

Material medium-contact: probe 1.4571, Al2O3, FKM

Materials non-medium contact: CW614N, PP, NBR

Supply voltage: 10...30 V DC ±10 %

Analog output: 4...20 mA two-wire

Load: max. 800 Ohm at 24 V (100 Ohm at 10 V/1.1 kOhm at 30 V, linear at operating voltage)

Electrical connection: for round plug connector M12x1, 4-pole or plug DIN 43650-A / ISO 4400

Reversal polarity protected: yes

Ingress protection:

IP 67 round plug connector

IP 65 plug DIN 43650-A / ISO 4400

Weight: approx. 0.25 kg

Conformity: CE
