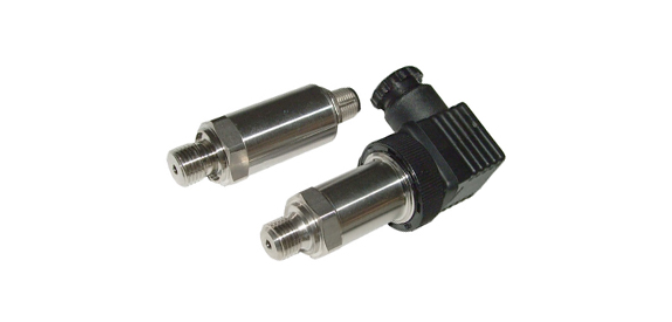

Senseca EPS2 Pressure transmitter (10..32 V DC)

Measurement accuracy

accuracy class 0.5

total error (Non-linearity + hysteresis + temperature effect + repeatability):

-40..+20 °C ±3 % typically ±2 %

-20..+85 °C ±1 % typically ±0.7 %

85..100 °C ±2.5 % typically ±1.5 %

Response time: (10..90 %) < 1 ms

Pressure resistance: corresponds to metering range

Media temperature: -40..+125 °C

Ambient temperature: -40..+105 °C

Storage temperature: -40..+125 °C

Media: fluids and gases

Materials medium-contact: 1.4301

Supply voltage: 10..32 V DC

Analog output: 4..20 mA two-wire

Load: max. (battery voltage -10 V) / 20 mA

Electr. connection: for round plug connector M12x1, 4-pole

Reversal polarity protected: yes

Ingress protection: IP 65 / 67

Weight: approx. 0.2 kg

Conformity: CE

EMC

interference radiation

DIN EN 55011: < 30 dB µV/m

Interference immunity

DIN EN 61000-4-3: 25 V/m

Shock test

1 m onto steel plate (as per IEC68-2-32)

Vibration 20 g (as per IEC 68-2-6 and 68-2-36)
