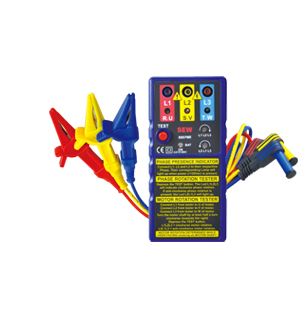

SEW 888PMR Phase Sequence Indicator (Contact Type)

Phase Presence Nominal Voltage for
  Phase Presence Indication (The voltage
  required for the neon Lamps L1, L2, L3
  to light up).
  From To 100Vac 500Vac
  Freq 10-400Hz
 Determination of Phase Rotation Field
 Direction
  From To 100Vac 500Vac
  Freq 10-400Hz
 Determination of Motor Connections
 (requires > 1/2 turn of the shaft)   From To 100Vac 500Vac
  Freq 10-400Hz
 Maximum Current Consumption   18mA
 Over Voltage CLASS III   500V
 Over Load between all terminals   500V
 Battery OK goes off when battery voltage   < 6.5 Vdc
 Dimensions   153(L) × 72(W) × 35(D)mm
 Weight (battery included)   Approx. 185g
 Power source   9V(6F22) × 1
 Safety standard   EN 61010-1 CAT III 500V

Details



FEATURES
● Indicates phase rotation.
● Indicates phase presence.
● Indicates motor rotation/wiring.
● Indicates battery status.
● Phase rotation and motor rotation indication works from as low as 1Vac.
● Small, rugged enclosure.
● Color coded test leads.
● Phase presence indication from as low as 100 Vac.
● Very low consumption.
● Fused.
● Lightweight, robust and compact.
● Works from 2 Hz to 400 Hz Sine.

  SPECIFICATIONS

  Phase Presence Nominal Voltage for
  Phase Presence Indication (The voltage
  required for the neon Lamps L1, L2, L3
  to light up).		   From
  To
  Freq		   100Vac
  500Vac
  10-400Hz
  Determination of Phase Rotation Field
  Direction		   From
  To
  Freq		   1Vac
  500Vac
  2-400Hz
  Determination of Motor Connections
  (requires > 1/2 turn of the shaft)		   From
  To
  Freq		   1Vac
  500Vac
  2-400Hz
  Maximum Current Consumption   18mA
  Over Voltage CLASS III   500V
  Over Load between all terminals   500V
  Battery OK goes off when battery voltage   < 6.5 Vdc
  Dimensions   153(L) × 72(W) × 35(D)mm
  Weight (battery included)   Approx. 185g
  Power source   9V(6F22) × 1
  Safety standard   EN 61010-1 CAT III 500V
