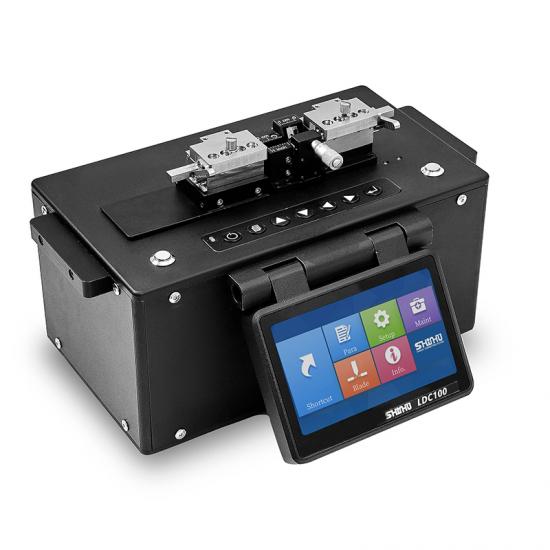

Shinho LDC-100 Large Diameter Optical Fiber Cleaver

Applicable optical fiber: SM, MM, dual cladding fiber, large diameter fiber, EDF, photonic crystal fiber, hollow fiber etc.

Number of fibers: Single

Cladding diameter: 80~1250μm

Coating diameter: 160~3000μm

Fiber clamping: Vacuum pump assist to clamp

Cleaving length: 5~40mm

Blade life: Diamond blade, 10 positions, typical 20000 times(cladding diameter 125μm)

Number of modes cleaving mode: 40

Display: 5.0 inches color LCD

Dimensions: 270*155*165mm

Weight: 3.68kg

Power supply: Adapter, input: AC100-240V(50/60Hz); output: DC11-13.5V

Operation condition: 0 to 95% RH and -40 to 80℃

Terminal: USB2.0

Standard Packages:

LDC-100 main body: 1unit

AC adapter: 1pc

Power cord: 1pc

User manual: 1pc

Carrying box: 1pc

Tools: 1set

Microscope: 1pc

Video
