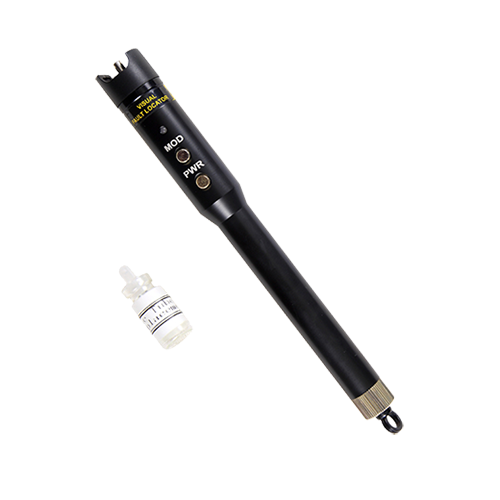

Shinho X5007 Visual Fault Locator VFL (650nm±10nm)
Manufacturer: Shinho Model: X5007 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Central Wavelength: 650nm±10nm (635nm can be required on request)
Emitter Type: FP-LD
Output Power (mW): 1, 10, 20, 30 or 50
Optical Connector: 2.5mm universal connector. For 1.25mm connectors, FC (Male)-LC (Female) convertor, can be optional on customer's requests
Operating Model: Both CW and Pulse available
Pulse Frequency: 2~3Hz
Power Supply: 2 AA alkaline batteries
Battery Operating Time: 650nm@1mw, ≥65hours650nm@10mw≥15hours; Test with Panasonic LR6 AA ALKALINE battery
Operating Temperature (℃): -10~+45
Storage Temperature(℃): -40~+70
Dimension (mm): ￠15X210
Weight(g): 120(Without battery)
