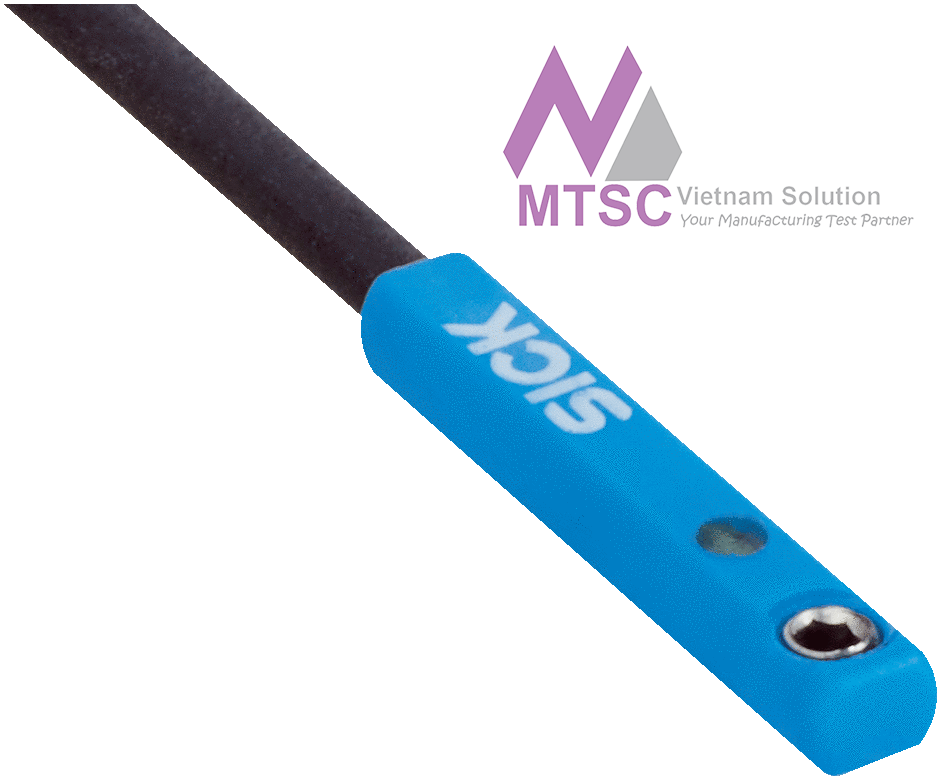

Cylinder typeC-slot
Preferred manufacturer slot
SMC
Bimba
Schunk
Cylinder types with adapter
SMC rail ECDQ2
SMC rail CDQ2
Housing length: 19.5 mm
Switching output: PNP
Switching frequency: 1,000 Hz
Output function: NO
Electrical wiring: DC 3-wire
Enclosure rating: IP67
Special features: Completely embedded mounting in the slot, providing protection
Supply voltage: 10 V DC ... 30 V DC
Power consumption: 8 mA 1)
Voltage drop: ≤ 2.5 V
Continuous current Ia: ≤ 100 mA
Protection class: III
Response sensitivity, typ.: ≤ 1.7 mT
Overrun distance, typ.: 2 mm
Hysteresis, typ.: ≤ 0.4 mT
Reproducibility: ≤ 0.1 mT 2)
Reverse polarity protection: ✔
Short-circuit protection: ✔
Power-up pulse protection: ✔
Ambient operating temperature: –25 °C ... +75 °C
Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
EMC: According to EN 60947-5-2
Connection type: Cable, 3-wire, 2 m
Connection type Detail
Conductor cross-section: 0.09 mm²
Cable outlet: Axial
Material
Housing: Plastic
Cable: PUR
Special features: Completely embedded mounting in the slot, providing protection
1) Without load.
2) Ub and Ta constant.
