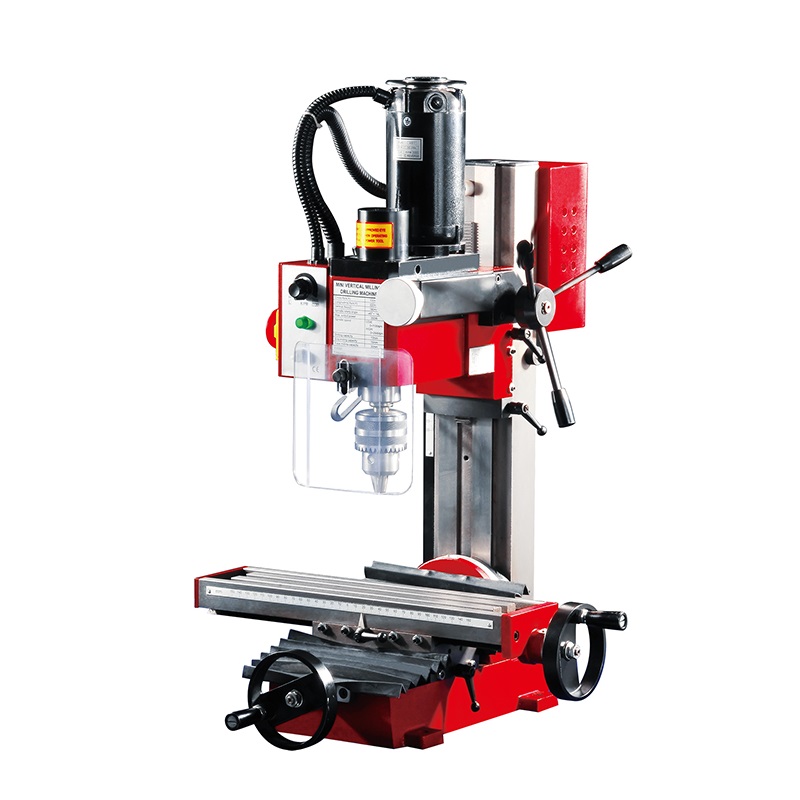

Sieg X2 Mini Mill Drill (350W)
Manufacturer: Sieg Model: X2 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Drilling capacity: 13 mm
End milling capacity: 16 mm
Face milling capacity: 30 mm
Longitudinal axis (X): 220mm
Crossaxis (Y): 100mm
Headstock travel (Z): 180 mm
Throat: 167 mm
Max. distance spindle to table: 280 mm
Head tilt: 45°L, 45°R
Spindle taper: MT3 or R8
Motor output power: 350 w
Spindle speed Low range: 100-1100 ±10% rpm
High range: 100-2500 ±10%rpm
Table effective size: 390x92 mm
T-slot size: 12 mm
Overal dimension (LxWxH): 520x510x760 mm
Package dimension(LxWxH): 540x480x700 mm
Weight (Net/Gross): 50/68 kg
