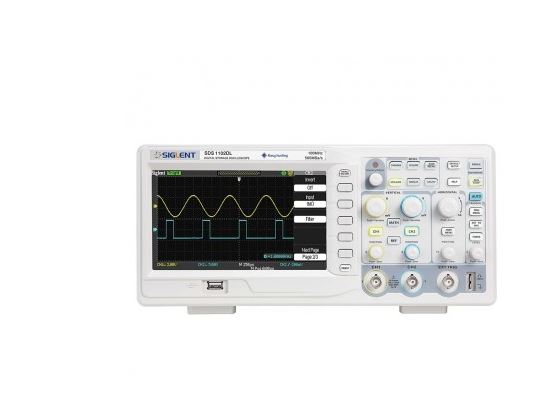

Name: Siglent SDS1202DL Digital Oscilloscope (200Mhz, 2Ch, 500MSa/s)
Brand: SIGLENT

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

Model			SDS1202DL
Bandwidth			200MHz
Channels	2CH+1EXT
Real time sampling rate	500MSa/s
Equivalent sampling rate		50GSa/s
Memory depth	32k
Rise time			< 1.8ns
Input impedance	1MΩ‖17pF
Time base range			2.5ns/div-50s/div
	Scan: 100ms-50s/div
Vertical sensitivity	2mV-10V/div
Vertical resolution	8bit
Trigger source	CH1, CH2, Ext, Ext/5, AC Line
Trigger types	Edge, Pulse, Video, Slope, Alternative
Math Operation	+, -, ×, ÷, FFT
Digital filter	High pass, Low pass, Band pass, Band Stop
Max input voltage	±400V (DC+AC Pk-Pk), CAT 1, CATII
Internal storage	2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms
External storage	Bitmap save, CSV save, Waveform save, Setting save
Language	English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic
Interface	USB Host, USB Device, RS-232, Pass/Fail out
Display	7 inches(178mm) color TFT(480*234) LCD
Power	AC 100-240V, 45Hz-440Hz, 50VA Max
PC software	Can through the computer remote control oscilloscope, extraction waveform analysis data
Remark	With original source seamless connection, form signal collection, produce integration system
Detailed performance parameters and technical index please refer to《SDS1000DLSeries Datasheet》
