Comprehensive safety guarantee, combined with anti-corrosion capability
The furnace cavity is made of Grade 316L stainless steel, The 3D adjustable, explosion-proof security door, installed with buffer and choke (to prevent microwave leakage), is self-sealing, impact-resistant and with interlocking linkage mechanism. The aerospace composite fiber outer vessel, wholly sprayed with PFA coating, boasts both higher anti-corrosion and higher pressure-resistance levels, compared to those of PEEK materials. The 70MPa pressure-resistance and the 600°C heat-resistance capabilities guarantee the safe operation of users under extreme conditions.
Dual magnetron inverter control system ensures consistent sample digestion

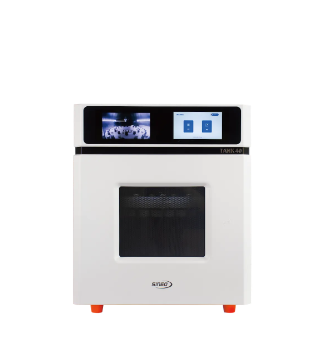

TANK 40 Microwave Digestion Workstation adopts dual magne- tron inverter control system and high-frequency closed-loop PID control, thereby realizing microwave continuous non-pulse output, more uniform microwave field in the cavity, higher energy utilization rate, and consistent sample digestion.
Two LCD screen, displaying real-time operationand experiment status
The 7-inch color LCD touch screen displays real-time data, such as temperature, pressure, time, and steps. Swift switch to display of coordinate curves greatly facilitates users to better know what is going on with the experiment. The 5-inch color LCD screen allows clear, real-time observation of operation inside the furnace cavity. Equipped with interfaces, such as USB, network port or Wi-Fi, the vessel, once permitted, can be remotely operated and monitored through computer.
Full-vessel pressure control technology

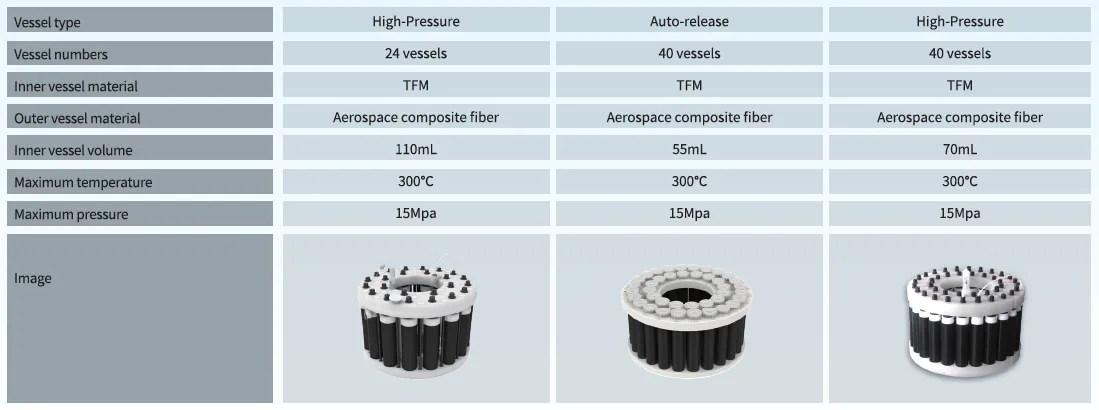

The high-pressure digestion vessel adopts the safety bolt struc- ture; while the auto-release vessel uses the elastic pressure relief and self-sealing technology. Under normal operation con- ditions, the vessels are completely sealed without leakage. Under overpressure conditions, Both paths will trigger a pressure release to ensure a passive pressure protection.
Full-vessel precise temperature control and moni- toring, ensuring safety and digestion performance
Non-contact mid-infrared sensors at bottom monitor and visual- ize real-time temperature change of sample solution inside each digestion vessel. The whole vessel temperature control system effectively monitors abnormal conditions during digestion exper- iment. Once abnormal temperature is detected, the vessel immediately stops microwave emission and starts to sound the alarm, so that experimental safety is not disturbed.
Smart software operation, conforming to FDA21CFRPart11
The vessel, running on the Android operating system, is conve- nient and multi-functional. It offers many functions, such aselectronic signature, hierarchical permission and audit trail, all in conformity with relevant regulations of FDA21CFRPart11. The software automatically identifies model of the turntable and automatically counts the number of vessels, making the experi- ment easier and faster, with the absence of tedious manual counting and input.
Various supporting tools, making experiment easy and convenient
Various tools are supplied to reduce workload for operators and improve the work efficiency of sample preparation. Forexample, a mobile and flexible tool trolley is able to transfer rotor loaded with sample into and out of furnace cavity, avoiding direct contact between operator and digestion vessel for safety concerns.
