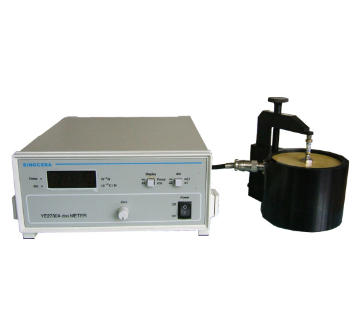

SINOCERA YE2730 D33 Test Meter

d33 Measurement Range:

x 0.1 range: 1 ‐ 200 pC/N

x 1 range: 10 ‐ 2000 pC/N

Accuracy:

x 1 range:

2% of the d33 value in 100 to 2000 pC/N

5% of the d33 value in 10 to 200 pC/N

x 0.1 range:

2% of the d33 value in 10 to 200 pC/N

5% of the d33 value in 1 to 20 pC/N

Resolution:

x 1 range: 1 pC/N

x 0.1 range: 0.1 pC/N

Force:

Frequency: 110Hz

Amplitude: 0.25N

Polarity indication: Indicates polarity on upper face of test element in compression. (- sign means negative, no sign positive)

Shunt Capacitance:

1 pF (for x 1 range)

0.1 pF (for x 0.1 range)

Dimensions:

Force Head: 110x140mm

Chassis: 280x200x90mm

Weight:

Force Head: 3 kg

Chassis: 2 kg

Power: 110/220V, 50/60Hz, 20W
