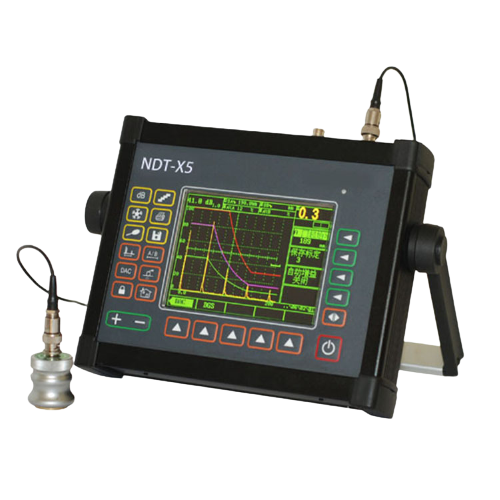

Jeweltest NDT- X5 Ultrasonic Flaw Detector (1~15000mm)
Manufacturer: Jeweltest Model: NDT- X5 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Range: 1~15000mm
Resolution: 0.01mm(<100mm); 1mm(>100mm)
Velocity: 1000~15000m/s; 20 fixed sound velocity
Display delay: -20~3400us; resolution: 0.1us
Probe delay: 0~99us; resolution: 0.01us
Linear error: Horizontal linearity error ≤0.1%
Vertical linearity error: ≤3%
Dynamic range: ≥32dB
Sensitivity leavings: ≥50dB 200mmФ2 flat-bottomed hole
Size: 240×180×50mm
Weight: 2.2Kg (including battery pack)
Operating environment:
- Operating temperature: -20℃~60℃
- Operating humidity: 20%~90%
