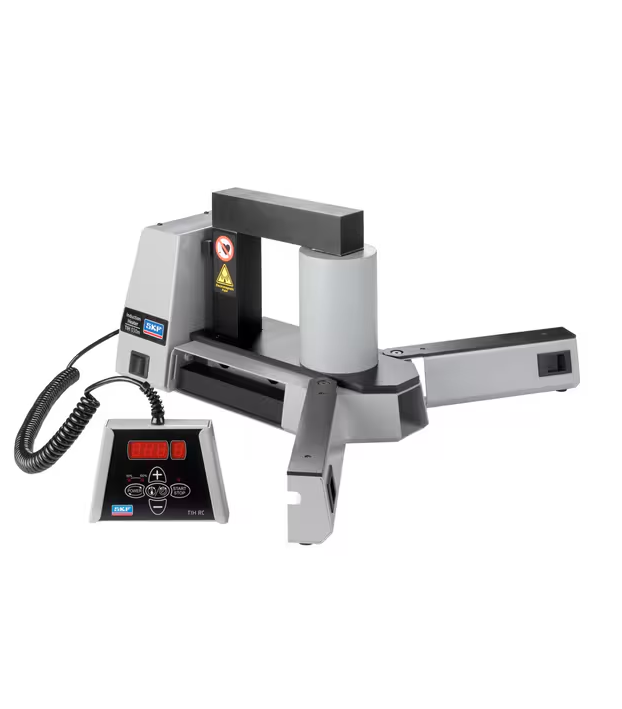

SKF TIH 030M/230V Bearing Heater (20–300 mm, 100 × 135 mm)

Max. bearing weight: 40 kg (88 lb)

Bore diameter range: 20-300 mm (0.8-11.8 in.)

Operating area (w × h): 100 × 135 mm (3.9 × 5.3 in.)

Coil diameter: 95 mm (3.7 in.)

Standard yokes (included) to suit bearing/workpiece minimum bore diameter:

65 mm (2.6 in.)

40 mm (1.6 in.)

20 mm (0.8 in.)

Application example (bearing, weight, temperature, time): 23136 CC/W33, 28 kg, 110 °C, 20 min

Max. power consumption: 2.0-2.4 kVA

Voltage and frequency: 200-240 V, 50/60 Hz

Temperature control : 20 to 250 °C (68 to 482 °F)

Demagnetisation according to SKF norms: <2 A/cm

Dimensions (w × d × h): 460 × 200 × 260 mm (18.1 × 7.9 × 10.2 in.)

Total weight (incl. yokes) : 20.9 kg (46 lb)
