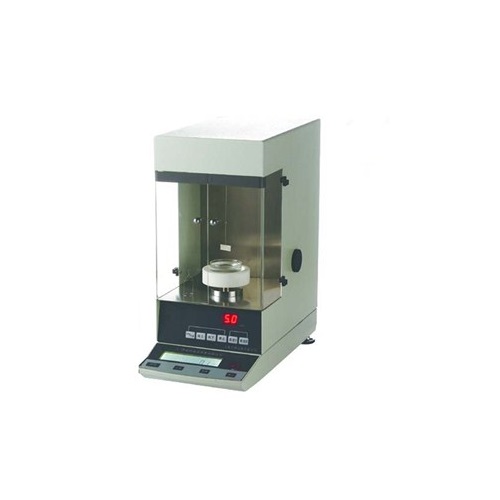

SKZ Industrial SKZ1013B Full Automatic Surface Tension Meter (0-600mN/m)

Test method: platinum plate (or platinum ring) method

Operation mode: automatic measurement on automatic raising of sample stage

Data value: The display value is that of surface tension in test method of platinum plate

The peak value is automatic reserved while the display value is that of sample tension in test method of platinum ring, and then the surface tension needs to be calculated through attached calculation software (or data processing software)

Measurement range: 0-600 mN/m

Scope of zero clearing: 0-600 mN/m

Range calibration: 600 mN/m

Sensitivity: 0.1mN/m

Accuracy: ±0.1mN/m (error test on literature value of double distilled water and pure alcohol at 20℃)

Repeatability: ±0.1mN/m (error test on literature value of double distilled water and alcohol at 20℃)

Display mode: wide-viewing angle backlighting LTD

Range of temperature: 0-110℃ (sample and constant temperature bath and external thermostatic bath are required)

Measurement time: 3-5 seconds for measurement of low concentration sample liquid

Container constant: min.15Ml

Voltage: commercial power AC220V, 1A
