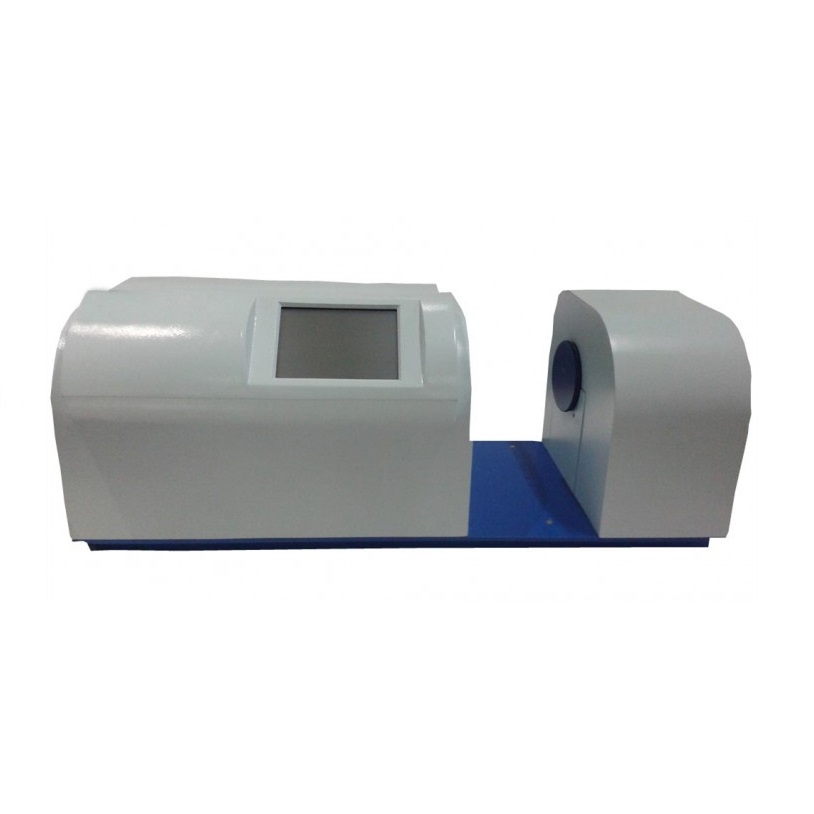

SKZ Industrial SKZ120C Fully Automatic Haze Meter (0-100%, 0-30%)

Transmittance accuracy: ≤ 1%

Haze Accuracy:

Haze ≤ 0.5%, ≤ ± 0.1%

Haze> 0.5%, ≤ ± 0.3%

Light Repeatability: 0.5%

Haze Repeatability:

Haze ≤ 0.5%, 0.05%

Haze> 0.5%, 0.1%

Instrument Size: 740mm * 270mm * 300mm

Instrument Weight: 21kg

Power supply: 220V ± 22V 50Hz ± 1 Hz

Environmental conditions: 5 ℃ ~ 35 ℃

- Performance:

1. Optical system:

Collimated illumination, diffuse vision, integrating sphere receiving mode

Sample window size: into windows: Æ25mm, out the window: Æ21mm

Light source: C light (6774K), A light (2856K)

Receiver: silicon photovoltaic cells

2. Electronic Systems:

Large LCD touch screen

Minimum reading: transmittance haze 0.01% 0.01%

USB interface, U disk storage function.

3. Measuring range:

Transmittance 0% -100.0%

Haze 0% -30.00%

4. Sample size:

Solid Sample size: 50mm * 50mm

Tank size: 50mm * 50mm * 10mm

Film Sample size: 50mm * 50mm

Checkout Sample: Æ40mm * 2mm.
