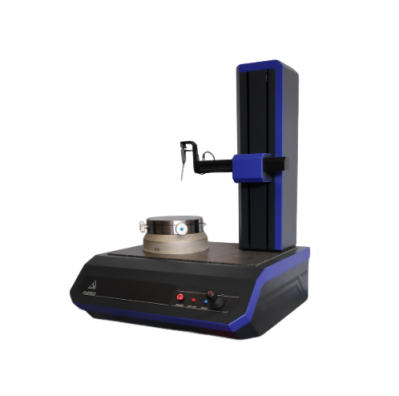

SM Metrology R250 CNC Roundness tester (500N, 250 mm)

Axis C - Table:

Pneumostatic, table diameter 250 mm

Maximum load 500 N

Maximum measurable diameter 500 mm

Centering and leveling: ± 3mm - ± 2 °

Roundness error: <0.08 μm

Z axis - Column:

Useful stroke: 500 mm, motorized and measuring

Straightness error over 400 mm: 0.8 μm

Straightness error over 100 mm: 0.3 μm

Measurement speed: 0.5-1-2mm / s

Positioning speed: 0-15mm / s

Axis R - Arm:

Useful stroke: 300 mm

Motorized positioning

Positioning speed: 0-15mm/s

Calculable parameters: Roundness, flatness, straightness, cylindricity, taper, cone shape, concentricity, parallelism,orthogonality, angularity, coaxiality, run-out, total run-out, thickness variation, Fourier analysis.

Probe: Bi-directional with impact protection - Measuring range: 0.6 mm - Resolution: 0.001 µm

Dimensions: 786 x 727 x 993 mm (L x P x H)

Weight: 280 kg

Power supply: 110-240 V; 50-60 Hz
