Measurement range: ±1500μm
Resolution: 0,0001 µm - (0,1nm)
Cut-off lenght: 0,08 - 0,25 - 0,8 - 2,5 - 8 mm
Cut-off number: Selectable from 1 to 20 (1 to 6 for 8 mm cut-off)
Traverse lenght: Up to 60 mm
Pick up: Inductive, it can be rotated of 90' for lateral measurements and interchangeable styluses
Measurement parameters: 81 roughness parameters
Ra, Rq, Rt, Rz, Rp, Rv, Rc, Rsk, Rku, RSm, RΔq, RΔa, Rmax, Rδc, Rmr, Rmr(c), RPc, RLo, Rlr, Rzjis, RHSC, R3z, hp, Ep
Pa, Pq, Pt, Pq, Pv, Pc, Psk, Pku, PSm, PΔq, Pδc, PPc, PLo, Plr, PHSC
Wa, Wq, Wt, Wz, Wp, Wv, Wc, Wsk, Wku, WSm, WΔq, Wδc, WPc, WLo, Wlr, WHSC
Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Rpk*, Rvk*, WDSm, WDc, WDt
R, AR, Rx, W, Aw, Wx, Wte, Rke, Rpke, Rvke, Mr1e, Mr2e, A1e, A2e
Available charts: Roughness, Waviness, Dominant waviness, Primary, Material ratio curve (bearing) and height amplitude distribution (density).
Unit of measurement: Millimeters and inches
User interface: Color display touchscreen TFT, 7 inches, 3 impermeable membrane switches
Languages: Italian, French, Inglese, German, Spanish, Portuguese, Japanese, Chinese, Korean
Memory: Up to 4000 measurements for roughness – Up to 1000 for profilometry
CAD: Functions to process the integrated profile,
Points: carthesian – on the profile – intersection – limit – maximum - minimum
Lines: best-fit – polar – interrupted - between two or more points – parallel
Arcs: best-fit – interrupted - between three or more points – center and radius – tangent
Dimensions: Aligned – Vertical – Horizontal – Radius – Angle – Line-point distance
Advanced: Axis alignment – Z magnification
Visualization: Pan – Zoom
Printing:
1- Capability to print on a common USB desktop printer in A4 format (Example: HP deskjet)
2- Capability to print to PDF on a USB drive
3- Printing on a PR11 device using Bluetooth connection

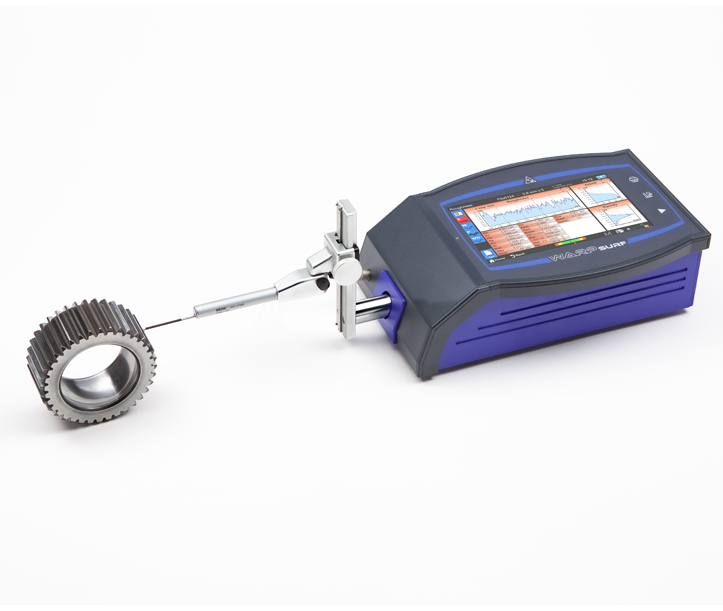

Equipment: WARPsurf roughness tester with SB300 magnetic probe and stylus 1-Y roughness, battery charger 110-230V, roughness specimen, plastic case, user manual
