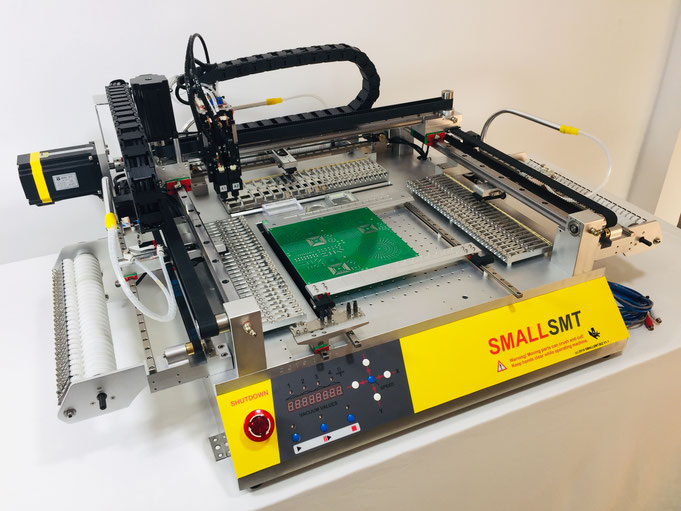

VP-2500DP Precision Belt PNP machine
Manufacturer: Smallsmt Model: VP-2500DP Origin: China Guarantee: 12 Month - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
- new linear guides on all axis, no head shaking like competitor machines using small belts and simple round rods
- new winder mechanics on our integrated push feeders
- new 3 side feeder possible having slots to move wasted tape under the machine
- new bottom camera position changed both cameras reachable for both heads
- new mounting options inside the working area
- new stronger motors and belts used
- new small tray feeder included on north and south side of PCB holder
Nozzle Changer
6 slot nozzle changer included!
Feeder
West: 28x 8mm
North: 2x 24mm, 3x 16mm, 6x12mm, 11x 8mm
East: 28x 8mm optional!
West feeder has fixed configuration
North feeder customizable
East feeder customizable
All feeders included!
Trays
Small trays on North and South side included!
Big tray optional!
Motion system
High torque stepper motors on X and Y axis microstepping resolution 0,02mm.
Stepper motors for Z axis and A1 + A2.
Angle resolution 0,0278 degree 1/6400
Mechanics
Linear guides from HIWIN in X / Y / Z axis.
Linear guides on each push feeder side.
Strong belt system.
Working area: 300 x 300mm NW and 300 x 250mm NWE
Vision system
2x Bottom cameras using differnt magnification
1x Top camera for fiducial detection / measurements
1x USB Video digitzer included.
OpenCV based vision system.
Software
English Windows software included based on Yusheng system.
