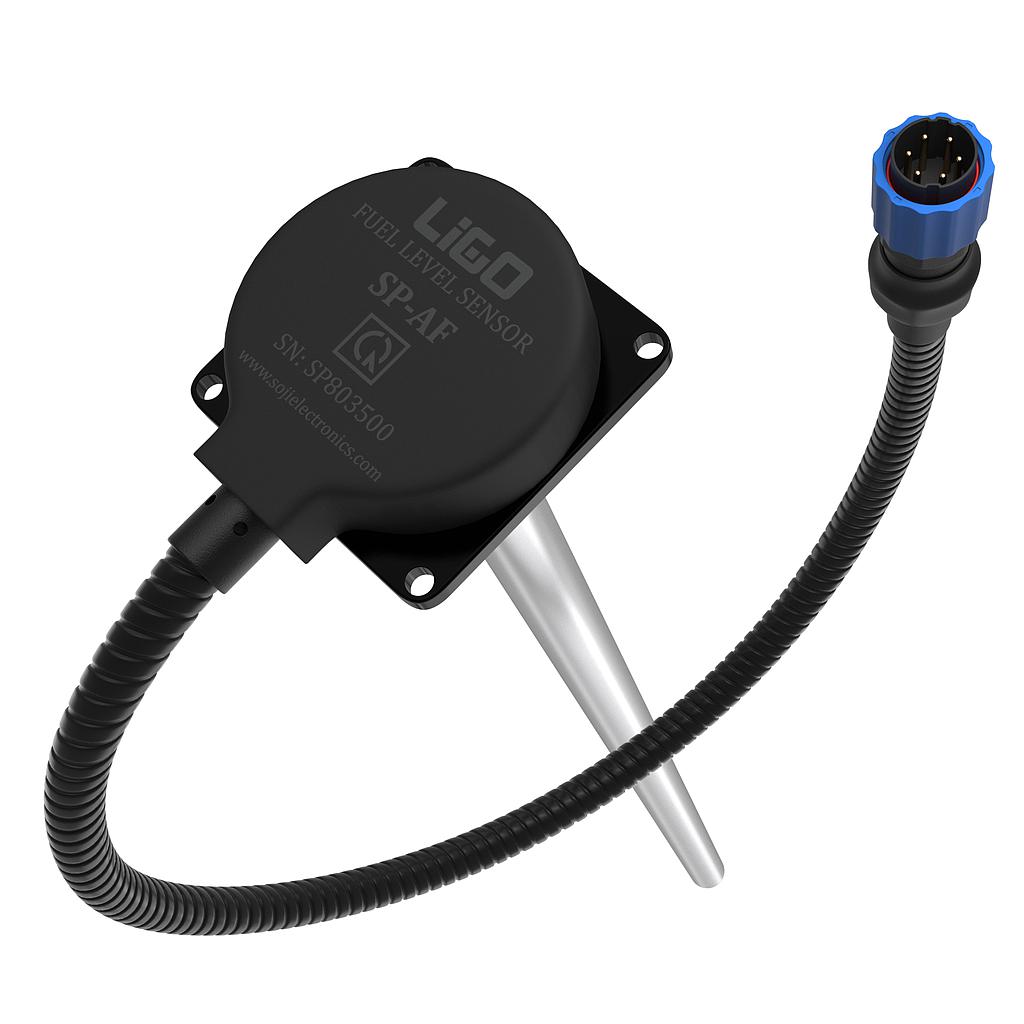

SOJI LIGO SP - AFL7 Fuel level sensor (20mA; 9-37V)
Manufacturer: SOJI Model: LIGO SP - AFL7 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Standard length (L),mm
700, 1000, 1500...up to 6000
Measuring error, %: ± 0.5 %
Output signal: Analog (1-10V),Frequency (500-2000Hz).
Power supply (DC input voltage, V): 9-37
Baud rate, bit/sec : 9600
Maximum power consumption, mA : 20
Waterproof standard (Ingress protection rating, IP): IP67
Operating temperature, °C: -40...+85
Maximum allowed humidity level,%: 100
Resolution, bit : 12
Average sampling period, s: 0...120
Message interval, s : Continuous
Average service life, years (minimum): 8
