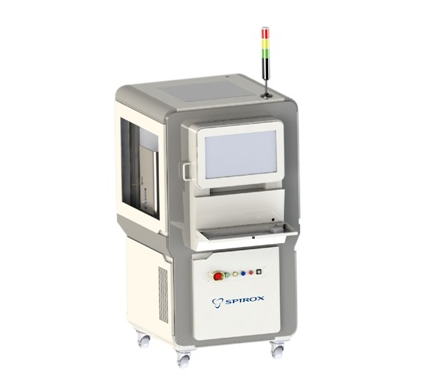

SPIROX LS1000M Package AOI Solution (45 x 45 mm², 1300 x 800 x 1700 mm)
Manufacturer: SPIROX Model: LS1000M - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
H/W Spec.
Dimension: 1300 x 800 x 1700 mm
Power: AC 220V Single Phase / 60Hz
CDA Air: Dry Air 5 ~ 6 kgf/cm²
Target Device
PKG Type: BGA / QFN / QFP
Max. Package: 40 x 40 mm²
Loading Tray: JEDEC Standard Tray Manual Loading
Vision Spec.
Camera: 6M Pixel Camera
FOV: 45 x 45 mm²
Pixel Resolution: 18 µm
Illumination: 10 CH Led Illuminator
Feature:
One Touch Test: inspection can be executed immediately after loading
Easily load different products without setup change
Fast inspection: 1 tray inspection can be completed in 2 minutes
Real-time upload reports and provide system control according to MIS
Effectively production time saving
Function to search and save inspection results and photos
