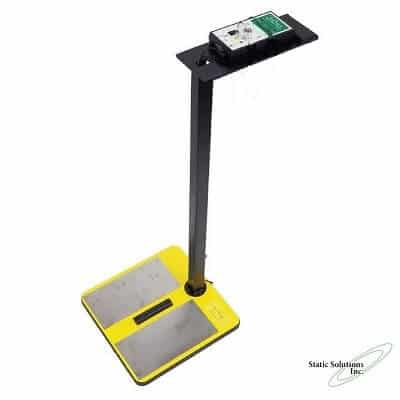

Static Solutions CT-8900 Ohm-Stat™ Deluxe Wrist Strap/Heel Grounder Tester (Full kit: Meter, Footplate, Stand)

Dimensions: 4.0 inches wide x 7.5 inches long x 1.5 inches thick (9.5 cm x 15.24 cm x 3.8 cm).

Weight: 10 ounces (.284 kg).

Power Supply: 9-volt battery (IEC6F22) or 12-volt DC adapter.

Test Voltage: 19 volts DC +/- (open circuit).

Accuracy: +/- 10%.

Resistance Ranges:

Wrist Strap: Low: 500k, 750k ohms; High: 2M, 5M, 10M, 25k, 35k, 50k, 75k, 100k (1000 M-Optional).

Heel/Toe/Shoe: Low: 500k, 750k ohms; High: 2M, 5M, 1ŨM, 25M, 75M, 100M (WOOM-Optional).

Internally selectable.

Foot Plate Dimensions: 15.75 inches x 15.75 inches pad (40 cm x 40 cm) featuring two 6 inches x 14 inches stainless steel plates (15.2 cm x 35.6 cm), dual path. Weight: 2.2 lbs. (1 kg).

Wall Mounting: Hook and loop high-strength discs and strips.

Display: Red and green LEDs, high dB buzzer, computer monitor (optional).

Features: Dual-path foot plate, toggle switch selector, RS-232 computer interface, NIST/CECC limits, micro-processor controlled. High accuracy.

Environment: 32°F - 100°F (0°C - 37°C), 0% - 85% RH humidity.
