INPUT: 4 current input channels+4 voltage input channels
3 PHASE MULTI-POWER SYSTEM
1P/2W(1P+NEUTRAL 1P IT NO NEUTRAL)
1P/3W(1P Split Phase)
3P/3W(3P DELTA)
3P/4W (3P WYE)
DATA REFRESH RATE: 1s
MEASUREMENT
Voltage/ACV (Urms, Upk)
Range: 5~600Vrms
Accuracy (L1/A,L2/B,L3/C): ±0.2%±2counts
PT ratio: 1 to 10000, variable
Current/ACA (Irms, Ipk)
Range: 1500A, with SY-1500A current probe
Accuracy: ±0.2%±5counts
Optional current probe: ST08-5A, CTC0080-50A,CTC0130-100A, SY-1500A, PY-3000A, SY-6000A
CT ratio: 1 to 10000, variable
Frequency Range:
42.5-57.5Hz (50Hz nominal)
51-69Hz (60Hz nominal)
Harmonic
Number: 1-51th
Accuracy: ±0.1%±n x 0.1%
THD: ±2.5%
Power: Active power (P), Reactive power(Q), Apparent power(S), Power Factor (PF), cosФ (DPF)
Energy: Active energy (EP), Reactive entergy(EQ), Apparent energy(ES)
Transient Event: Dips/swell
Logger
Interval: 1s to 60 minutes
Memory: 32G Micro SD card
GENERAL
Display: 4.3 inch color touch screen/480x272
Language: Multi languge including Chinese, English, etc.
Communication Port: USB Host, LAN
Dimension/Weight: 158x200x47mm/1kg
Power: 18650 lithium ion 3.6V x 2, 5100mAh / 6h or DC 5V/3A adapter
Safety standard: IEC61010-1, CATIII 600V
Standard Accessories
Voltage Test Leads and Alligator Clips: 5pcs
DC 5V/3A Power Adapter and Power Cord: 1pcs
Soft Carry Bag: 1pcs
CD(Manual and PC Software): 1pcs

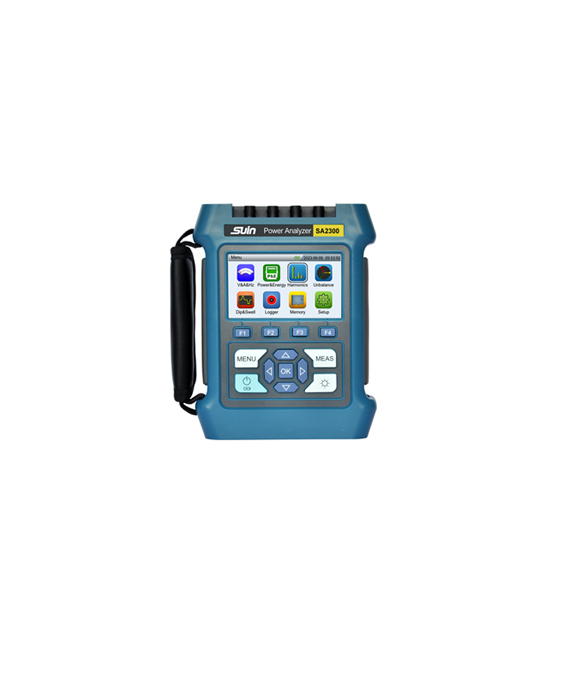

With the advancement of power equipment, the power grid system is evolving into a more complex network, leading to increasingly challenging fault issues. In response to this, our company has recently introduced the SA2300, a multifunctional, lightweight, and cost-effective power analyzer and meter. The three phase portable power quality analyzer is designed to assist you in swiftly and accurately diagnosing faults within the power system, enabling more thorough and systematic monitoring of power quality.
The SA2300 is extensively utilized for monitoring power quality and tracing faults across various applications.
Application
The three-phase power analyzer is a specialized portable device designed for monitoring and analyzing the operational quality of power grids. It is capable of providing harmonic and power measurements during power operations, along with the ability to record and store long-term data of power grid operations.
The 3-Phase Power and Harmonic Analyzer finds application in various sectors such as electric power, petrochemical, metallurgy, railway, industrial and mining enterprises, scientific research institutions, metrology departments, etc. It is particularly well-suited for conducting comprehensive analysis and diagnosis of various electrical parameters including voltage, current, power, electric energy, harmonics, and phase.
Design Features
Economical, compact and simple to use
Provide all necessary measurement function
4.3 inch color LCD touch screen
32GB Micro SD card is used for storage
