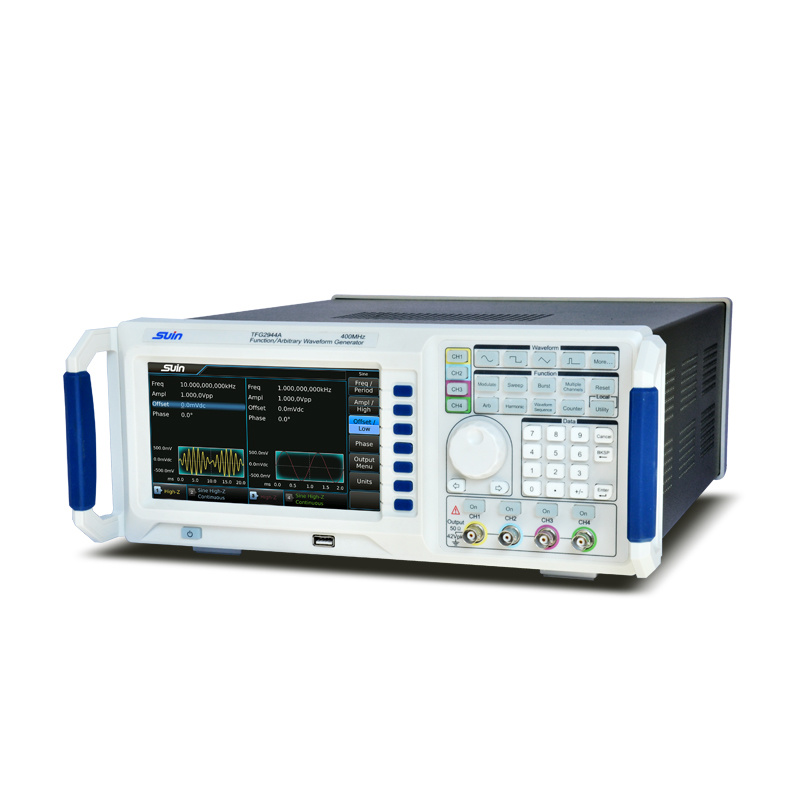

SUIN TFG2944A Arbitrary Waveform Function Generator (400MHz, 4CH)

Channel: 4

Frequency

Sine: 1μHz~400MHz

Square: 1μHz~120MHz

Pulse: 1μHz~80MHz

Ramp: 1μHz~6MHz

Others: 1μHz~50MHz

Resolution: 1μHz

Accuracy: ±1ppm

Waveform

Type: 165 kinds include: Sine, Square, Ramp, Pulse, Noise,DC, PRBS, bulit-in arbitrary waveforms and user-defined harmonic, etc.

Sample Rate: 1.2GSa/s

Vertical Resolution: 14 bits

Arbitrary

Sample Rate: 1uSa/s~200MSa/s

Length: 2 ~ 32M points

Resolution: 14 bits

Square

Rise/Fall Time: ≤2.5ns

Duty Cycle: 0.01％~99.99％

Pulse

Rise/Fall Time: 2.5ns ~1.2s

Width: 4ns~(1000000s ~4ns)

Sine Spectral Purity

Total Distortion: ≤0.2% (20Hz~20kHz, 20Vpp)

Phase Noise: <-140dBc @ 10MHz (0dBm, 10kHz offset)

Amplitude

Range (50Ω load)

f≤40MHz : 1mVpp~10Vpp

f≤100MHz: 1mVpp~5Vpp

f≤200MHz: 1mVpp~2Vpp

f≤300MHz: 1mVpp~1.5Vpp

f>300MHz: 1mVpp~1Vpp

Accuracy: ±(1％of setting＋1mVpp), (Sine 1kHz，0V offset，≥10mVpp)

Offset

Range: ±5Vpk ac+dc (50Ω load)

Accuracy: ±(1%of setting+2mV+0.5% of amplitude)(High-Z)

Modulation

Type: FM, AM, PM, PWM, Sum, FSK, 4FSK, NFSK, PSK, 4PSK, NPSK,ASK, OSK

Burst

Burst Count: 1 to 100000000

General Characteristic

Power: AC 100~240V, 45~65Hz , <80VA

Dimension & Weight: 363*154*467 mm, 10.0KGs

Standard Accessories

Power cord: 1pcs

BNC cable: 1pcs

CD(Software+User's Guide): 1pcs

Wifi Antenna: 1pcs
