Frequency Range: 10MHz~12GHz
Resolution: 20Hz, 1mHz(option)
Accuracy: ±1ppm, Frequency≥1.0kHz,18ºC-28ºC
Microwave Signal Generator Amplitude
Setting Range: -25dBm~+15dBm
Specified Range: -10dBm~+13dBm
Resolution: 0.1dB
Accuracy: ±1.5dBm of setting (output level: +13dBm ~ -10dBm)
Output Impedance: 50Ω
Microwave Signal Generator Spectrum Purity
Harmonic: <-35dBc
Non-harmonic: <-70dBc
Phase Noise: -94dBc/Hz@10kHz,at 10GHz output
Microwave Signal Generator Modulation
PM break-make ratio: 60dBc
Make-break time range: 100nS-10mS
General Characteristics
Power: AC200V~240V, 50(1±10%)Hz,<40VA
Dimension&Weight: 254*103*374mm, 4.2kg
Standard Accessories
Power Cord: 1pcs
CD(Software+User's Guide): 1pcs

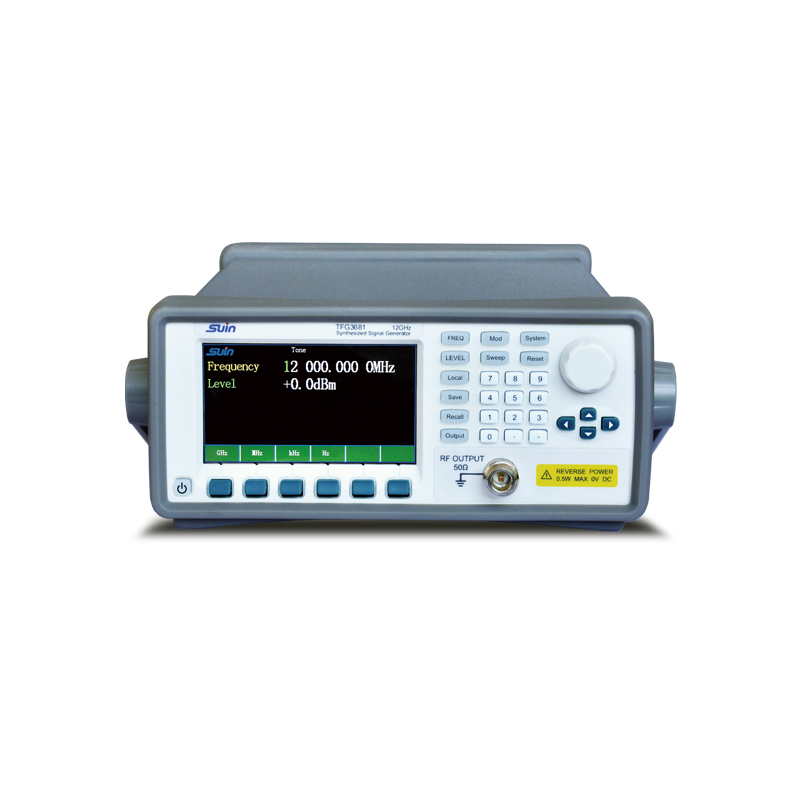

A microwave signal generator is a device that produces a continuous or pulsed microwave frequency signal. It is used in various applications such as testing and troubleshooting microwave communication systems, radars, and other electronic equipment.
Feature
Ultra-low phase noise, excellent spurious, noise suppression, ultra-wide bandwidth
wide application range in radar, communication, ECM, electronic reconnaissance and etc.
It can also be used as local oscillator and signal generator
