Frequency
Range: 9kHz ~ 3.6GHz
Resolution: 0.01Hz
Spectral Purity
Harmonic(CW mod, 1MHz≤f≤3.6GHz, level≤+13 dBm): <-30 dBc
Non-harmonic(CW mod, level>-10 dBm, carrier offset>10kHz)
100kHz≤f≤2.4GHz: <-60dBc,<-70 dBc (typ.)
2.4GHz<f≤3.6GHz: <-54dBc,<-64 dBc (typ.)
SSB Phase Noise(CW mod, carrier offset=20kHz, 1Hz bandwidth)
100kHz≤f≤2.4GHz: <-105dBc/Hz,<-110 dBc/Hz (typ.)
2.4GHz<f≤3GHz: <-100dBc/Hz,<-105 dBc/Hz (typ.)
3GHz<f≤3.6GHz: <-94dBc/Hz,<-105 dBc/Hz (typ.)
Level
Setting Range: -110dBm to +20dBm
Specified Range: -110dBm to +13dBm
Resolution: 0.01dB
Accuracy: 100kHz≤f≤3.6GHz: ≤ 1 dB, ≤ 0.5 (typ.)(output level:+13dBm ~ -10dBm)≤ 2 dB, ≤ 0.7 (typ.)(output level:-60dBm ~ -110dBm)
VSWR: 1MHz≤f≤3.6GHz<1.8 (typ.)
Internal Modulation Generator (LF)
Waveform: Sine Square
Frequency Range
Sine: DC~200kHz
Square: DC~20kHz
Resolution: 0.01Hz
Voltage Range: AC: 0 ~ 3v, DC:-3V ~ 3V
Sweep
Function: Frequency Sweep, Level Sweep
Modulation
Type: AM, FM, φM, Pulse modulation
General Characteristics
Power: AC 100~240V, 50/60Hz(1±10%), 60VA
Dimension & Weight: 364×154×388 mm, 6kg
Standard Accessories
Power Cord: 1
N-BNC Connector: 1
CD (Software+User’s Guide): 1

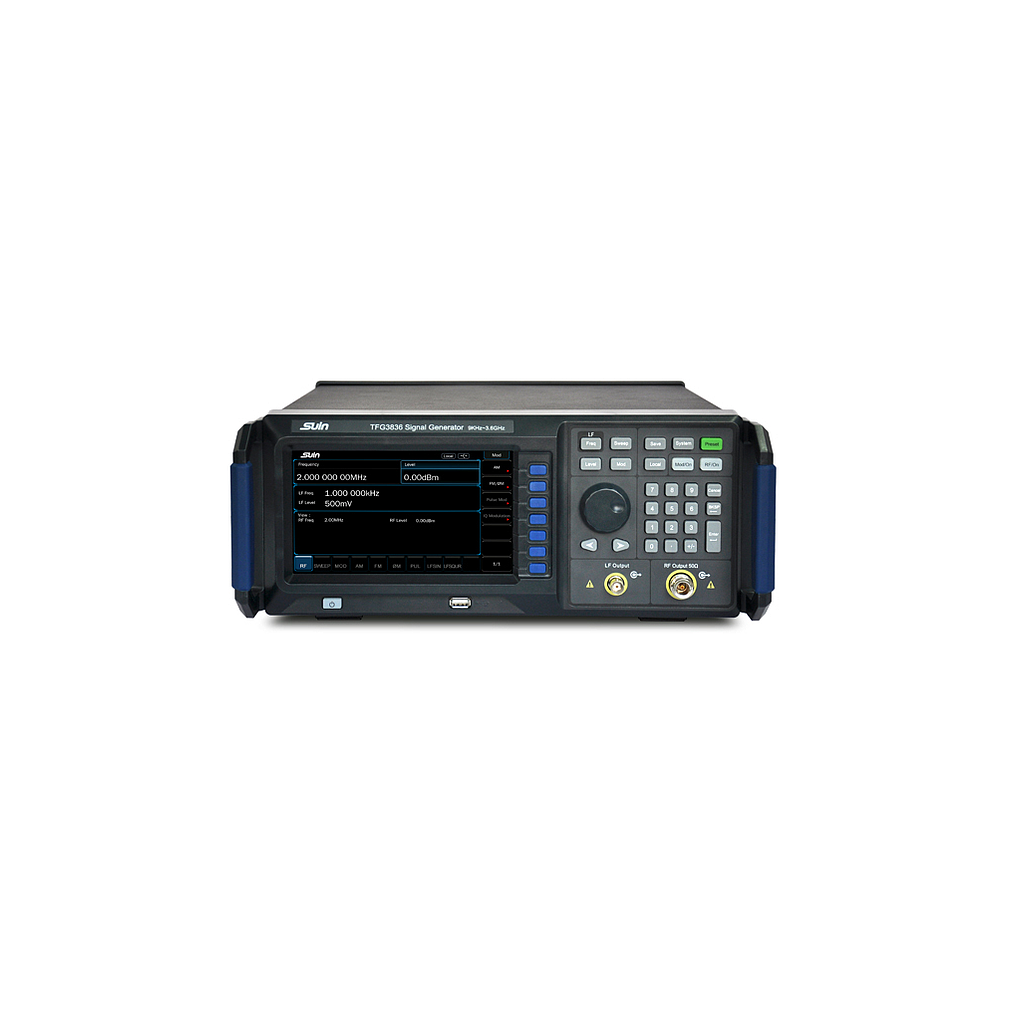

Suin’s TFG3836 RF signal generators have a frequency range from 9KHz to 3.6GHz. Except of normal analog modulation such as AM, FM and φM, it can also provide pulse modulation. In addition, sweep capability for frequency and power could also be supported.
With higher accuracy and pure output, the TFG3836 could be the good choice for R&D, education and manufacturer.
