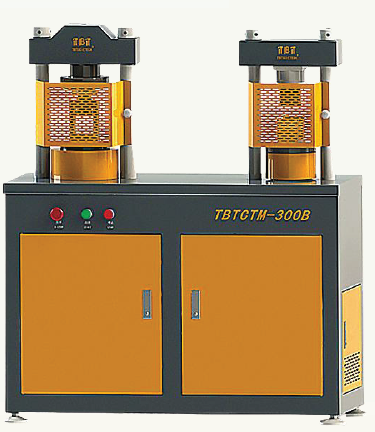

TBT CTM-300B Compression and Flexural Testing Machine with PC Control
ManufacturerTBT(View more products from this manufacturer)
ModelCTM-300B
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Max. compression test capacity 300kN
Max. flexural test capacity 10kN
Measuring range of load 10%~100%F.S.
Relative error ±1%
Loading rate for compression test 0.1~10kN/s
Loading rate for flexural test 0.5~200N/s
Vertical clearance between platen 170mm
Upper platen size Ф155x60mm
Lower platen size Ф155x35mm
Platen hardness 55HRC
Sensor type Oil pressure sensor 50MPa
Hydraulic cylinder piston Sealing ring type(PTFE)
Weight Around 500kg
Power Supply 220/380V, 50/60Hz, 0.75kW
