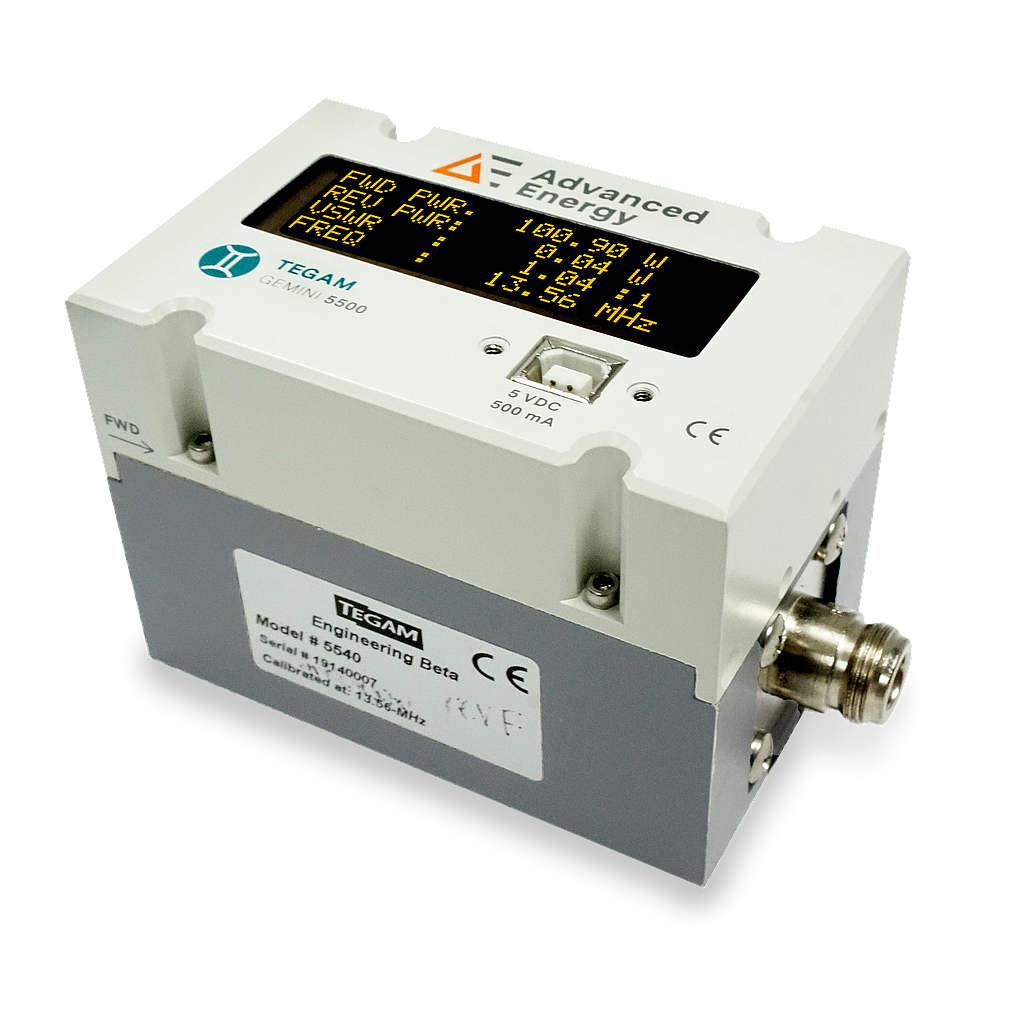

General specification
Measurement Ranges
Frequency (MHz): 0.2 to 200
Forward Power (W): 3 to 5,000 (Connector dependent)
Reverse Power (W): 3 to 250
Basic Power
Accuracy (2σ, approx. 95% confidence): ± (0.5% of Rdg + 0.5 W) at the calibrated frequencies (see Certificate of Calibration) 1-Year
Measurements: Forward Power, Reverse Power, VSWR, and Frequency
Impedance: 50 Ω
Directivity: ≥28 dB (Typical- 1MHz to 60MHz)
VSWR: Better than 1.05 : 1 below 60 MHz
Insertion Loss: < 0.05 dB with QC Type N connectors
Connector Type: Input and output connector configurations are specified by customer at time of purchase. Available connectors are: N, HN, LC, 7/16 DIN, 7/8 EIA, and QDS-UL
Display: 6-Digit Auto-Resolution OLED Display
Display Resolution: Up to 6 digits (2 digits past decimal point)
Power (W): 0.01
Frequency (MHz): 0.01
Power / Data Connector: 5 VDC, 500 mA
Compliance:
EN 61326-1:2013
CE (2014/30/EU) / RoHS3 (2015/863/EU) / REACH
IEC 61010-1, 61010-2, 61326-1, and 61326-2
Operating Temperature: +18 to +28 °C (+64.4 to +82.4 °F)
Storage Temperature: -40 to +71 °C (-40.0 to +159.8 °F)
Warranty: 1-year Parts & Workmanship
Approximate Dimensions (W x H x D, including Type N connectors): 155 x 71 x 64 mm (6.1 x 2.8 x 2.5 in.)
Weight: 1001 g (2.20 lbs)
