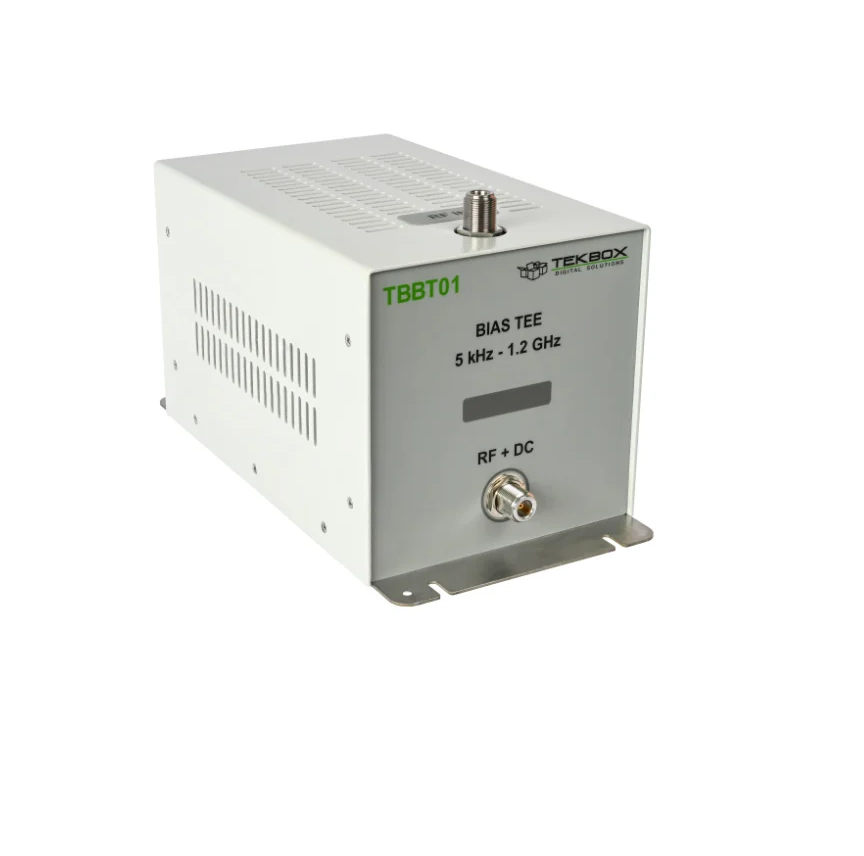

Usable frequency range: 5 kHz – 1.2 GHz
RF path insertion loss: <1 dB typ. in the range 10 kHz – 1 GH, < 1.5 dB in the range 5 kHz – 1.2 GHz
VSWR: 1 < VSWR < 2 in the range 5 kHz to 1 GHz
Characterized frequency range: 1 kHz -3 GHz
RF power handling: 50 W from 5 kHz – 1 GHz
RF- connectors: N-female
Operating voltage range: max. ±100 V;
Operating current range: ± 5A to 10 A DC, see heat up characteristics plot, ± 5A DC continuous, max. ± 15 A DC
DC path resistance: < 1.5 Ω @ 22°C
DC input socket: Phoenix Contact 1998933, male mating female terminal: Phoenix Contact 1967375
Dimensions: 150 mm x 155 mm x 330 mm;
Weight: 3 kg
