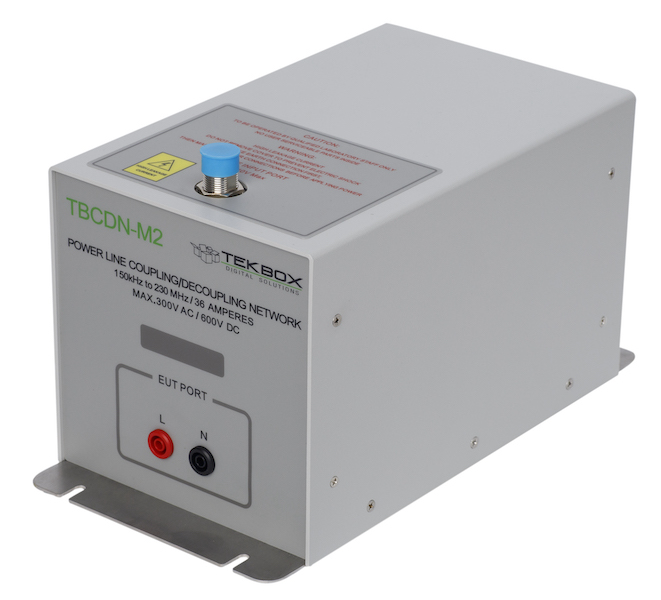

Maximum supply voltage: 300V AC, 600V DC
Maximum current: 36A
Frequency range: 150 kHz – 230 MHz
Maximum RF input power: 6.5W CW
Maximum RF input voltage: 32 V
Common mode impedance: 150 kHz – 24 MHz: 150 Ω ± 20 Ω
24 MHz – 80 MHz: 150 Ω + 60 Ω / - 45 Ω
80 MHz – 230 MHz: 150 Ω ± 60 Ω
Voltage Division ratio: 150 kHz – 80 MHz: 9.5 dB ± 1 dB
80 MHz – 230 MHz: 9.5 dB + 3 dB / - 2 dB
RF input connector: N – female
EUT / AE connectors: 4 mm banana safety jacks, 4mm slots in base plate for GND connection
Housing material: powder coated aluminium, stainless steel base plate
Dimensions: 300 x 150 x 150 mm
Weight: ca. 2.5 kg
Included: individual test protocol with voltage division ratio and common mode impedance
Optional accessories: 30mm adapter panel with shorting bars and N connector 50 Ω to 150 Ω N-male to N-female adapter
