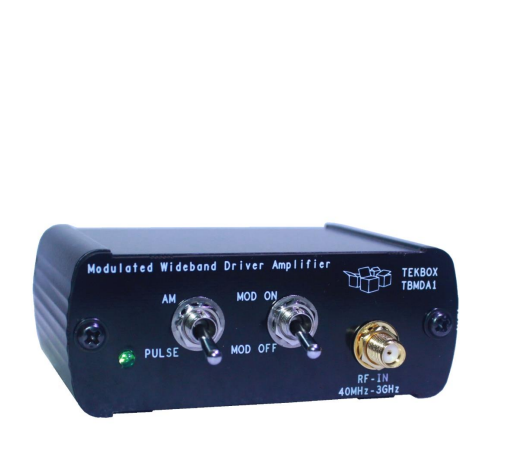

Tekbox TBMDA1 Modulated Wideband Driver Amplifier
Manufacturer: Tekbox Model: TBMDA1 Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Input: 50 Ohm, SMA female
Output: 50 Ohm, SMA female
Nominal supply Voltage: 5V, typ. 235mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +9dBm
1dB output compression point @ 40MHz: +21.5dBm
1dB output compression point @ 2 GHz: +22.5dBm
3rd order output intercept point @ 40 MHz: +39dBm
3rd order output intercept point @ 2 GHz: +42dBm
Reverse isolation S12: -45dB
Noise Figure: 3 … 4 dB
Internal modulation frequency AM: 1 kHz ±10%
Internal modulation frequencies PM: 1 kHz ±10%, 217 Hz ±20%
Duty cycle, PM: 50% ±10% @ 1 kHZ; 12.5% ±20% @ 217 Hz
