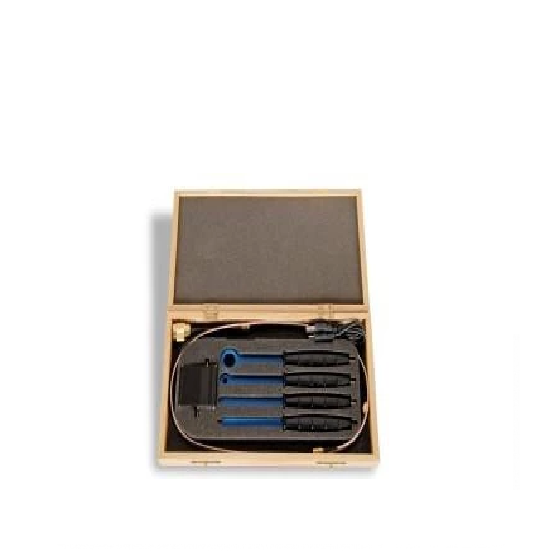

Features of probes:
Slim design for good access in between tightly spaced components
Shielded loops to avoid picking up common mode noise; insensitive to the human hand
Frequency range: up to 6GHz, see coupling plots of the respective probes
SMB connectors to avoid twisting the RF cable when scanning DUTs
Insulated with rubber coating
Dimensions of probes:
H20 H-Field: 170 mm (length); 20 mm (loop); n.a. (tip)
H10 H-Field: 170 mm (length); 10 mm (loop); n.a. (tip)
H5 H-Field: 170 mm (length); 5 mm (loop); n.a. (tip)
E5 E-Field: 170 mm (length); n.a. (loop); 5 mm (tip)
Technical Data of TBWA2/40dB:
Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply Voltage: 4.5 - 5V, typ. 210mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: -10dBm
1dB output compression point @ 2GHz: +20dBm
Reverse isolation S12, 0.1 …6GHz: 40dB
Noise Figure @ 2GHz: 5 dB
Gain:
1 MHz: 30 dB
10 MHz: 40.2 dB
100 MHz: 40.2 dB
500 MHz: 40 dB
1 GHz: 39.5 dB
3 GHz: 36.4 dB
4.5 GHz: 34.6 dB
6 GHz: 34.7 dB
