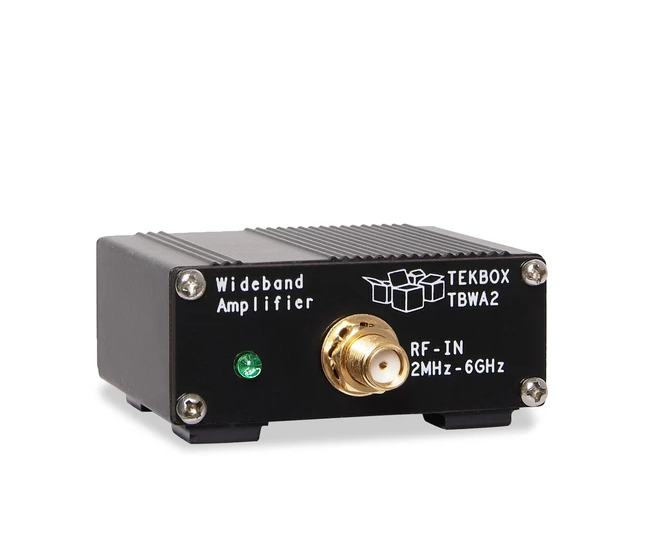

Tekbox TBWA2/20dB 20dB Wideband Amplifier
Manufacturer: Tekbox Model: TBWA2/20dB Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply Voltage: 4.5 - 5V, typ. 110mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +10dBm
1dB output compression point @ 2GHz: +20dBm
3rd order output intercept point @ 2GHz, Pin = 0dBm/tone, Δf = 10MHz: +35dBm
Reverse isolation S12, 0.1 …6GHz: 23dB
Noise Figure @ 2GHz: 4.5 … 5 dB
Gain:
1 MHz: 14.8 dB
10 MHz: 20.2 dB
100 MHz: 20.2 dB
500 MHz: 20 dB
1 GHz: 19.8 dB
2 GHz: 19 dB
3 GHz: 17.6 dB
4.5 GHz: 17.4 dB
6 GHz: 15.4 dB
