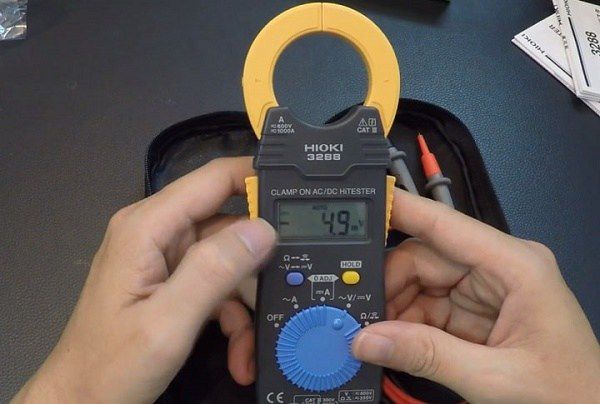

Hioki 3288 meter is easy to operate, compact design
With dimensions of only 57 (W)mm x 180 (H)mm x 16 (D)mm and a weight of only 150g, the Hioki 3288 clamp meter is a measuring tool worth buying and experiencing. Its compactness and lightness make it easy to carry to many different locations without causing any inconvenience. This is an important advantage, especially when working at height or in narrow spaces.
Despite its compact design, the Hioki 3288 is not difficult for users. The clear LCD screen with a reasonable size makes it easy for users to observe the parameters. At the same time, the 35mm diameter of the clamp head and the compact design make it more convenient for work.
Notably, with its high-quality alloy and premium plastic materials, the Hioki 3288 clamp meter is impact-resistant and can withstand drops from a height of 1 meter without compromising its performance. This demonstrates the product's reliability and stability in all working conditions.

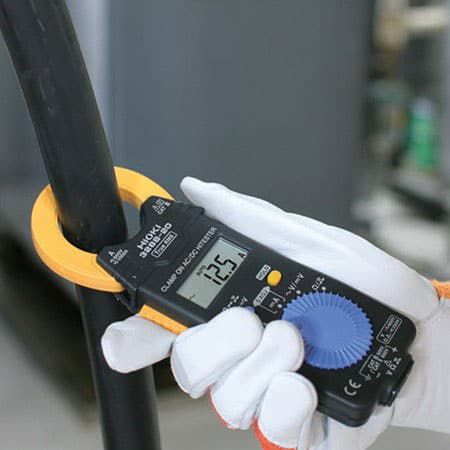

AC/DC current measurement capability up to 1000A
With its ability to measure current up to 1,000 A, this product is ideal for applications involving inspection and maintenance of uninterruptible power supply (UPS) systems, train motors, electric vehicle chargers, and many other scenarios. This measurement capability also enables users to accurately test current and voltage in industrial and high-voltage electrical systems.
Powered by a convenient 3V lithium battery (CR2032), the Hioki 3288 clamp meter allows for continuous operation for approximately 2.5 days (60 hours). This ensures uninterrupted measurements during work and helps prevent errors caused by low battery power
See more: Clamp meter HIOKI 3280-10F (1000A)
Using True RMS technology
The Hioki 3288 clamp meter's True RMS technology allows input measurements even when noisy. This makes it ideal for electrical equipment and inverter maintenance work where accuracy is paramount. True RMS technology easily handles environments with non-sinusoidal waves and harmonics.
Diverse applications for users:
The Hioki 3288 clamp meter is well-suited for inspecting and maintaining devices such as inverters, solar and wind power generators, as well as fast chargers for electric vehicles, aircraft, and ships.
Priced at just over 3 million VND, the Hioki 3288 offers exceptional value for money. If you’re looking for a versatile, reliable clamp meter that covers essential measurement functions, this model is a perfect choice.
Additionally, you may consider other Hioki clamp meter models such as the Hioki 3280-10F, Hioki CM4373, or Hioki CM3289. These are among the most popular and widely recommended options today, giving you more variety and flexibility when choosing the right measuring instrument.
Specifications:
AC Current range: 100 or 1000 A AC, 2 ranges (±1.5 % rdg. ±5 dgt. at 50 or 60Hz), Effective value rectifier
DC Current range: 100 or 1000 A AC, 2 ranges (±1.5 % rdg. ±5 dgt.)
AC Voltage range: 4.200 to 600 V AC, 4 ranges (±2.3 % rdg. ±8 dgt. at 50 or 60Hz), Effective value rectifier
DC Voltage range: 420.0 mV to 600 V DC, 5 ranges (±1.3 % rdg. ±4 dgt.)
Resistance: 420.0 to 42.00 M-ohm, 6 ranges
Accuracy: ±2.0 % rdg. ±4 dgt. (at 420 to 420 k-ohm range)
Continuity: 420.0 ohm (Buzzer sounds at approx. 50 ohm or less)
Frequency characteristics: AC current: 10 to 1 kHz, AC voltage: 30 to 500 Hz
Display Section: Digital / LCD, maximum 4199 dgt.
Sampling Rate: 2.5 times/sec
Crest Factor (RMS): 2.5 or less (150 A, 1000 V maximum)
Max. Circuit Voltage: 600 V AC rms (insulated wire)
Power Supply: CR2032 (3 VDC) × 1, Continuous use 25 hours
Core jaw dia.: Ø35 mm(1.38 in)
Dimensions: 57 mm(2.24 in)W × 180 mm(7.09 in)H × 16 mm(0.63 in)D
Weight: 150 g (5.3 oz)
Accessories: 9208 TEST LEAD (1), 9398 CARRYING CASE (1)
