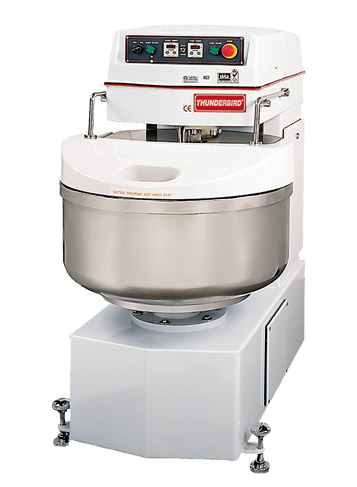

Thunderbird ASP-60 (132 lb capacity) Spiral Mixer (110 qts)

Features:

Two speed motor with timer and separate bowl drive motor.

Bowl jog control makes for easy unloading.

Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.


Specifications

Capacity:

Flour capacity (kg)/(lbs) 40/88

Dough capacity (kg)/(lbs) 60/132

Bowl capacity (qts) 110

Dia. of bowl (mm) 600mm/24in

Height of bowl (mm) 360mm/14.17in


Motor:

Horsepower 7Hp / 1HP

1st speed (kw) 2.0

2nd speed (kw) 4.0

Bowl(kw) 0.6


Dimensions:

Width (mm) 655mm/26in

Length (mm) 1120/44in

Height(mm) 1318/52in


Machine Weight  (kg/lb): 380/838
