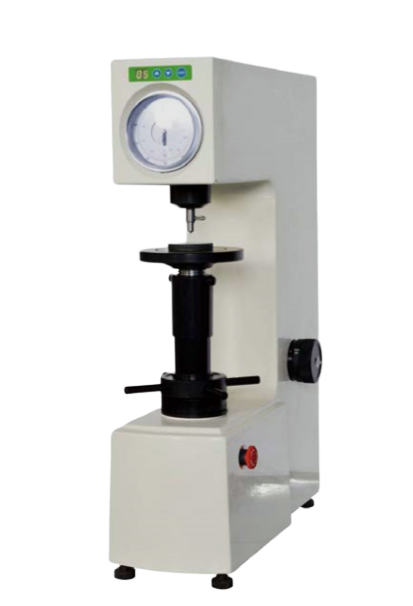

TIME 6104 Motorized Double Rockwell Hardness Tester (3kgf (29,42n), 10kgf (98,07n))

  • Manufacturer: TIME
    Model: 6104
    Origin: China
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact

Intial test Force: 3kgf (29.42n), 10kgf (98.07n)

Total test force

15kgf (147.1n), 30kgf (294.2n), 45kgf (441.3n), 60kgf (588.4n), 100kgf (980.7n), 150kgf (1471n) Loading method: Automatic (Loading/Dwell/Unloading)

Hardness reading: Dial

Resolution: 0.5HR

Dwell time: 2~60s

Max. height of specimen: 175mm

Throat: 165mm

Execute standard: ISO 6508, ASTM E-18, jIS Z2245, GB/T 230.2

Power source: AC220V, 50Hz

Dimension (mm): 520×215×700

Packing Dimension: 650×370×950

Weight (kg)

net Weight: 80

Gross Weight: 100

Standard Delivery

1 set Instrument Main Body

ф1.588mmBall Indenter

Large Plane Test Table

Hardness Block 60~70 HRC

Hardness Block 80~100 HRB

Hardness Block 65~80 HR30N

Power Cable


Inner Hexagon Spanner

Diamond Rockwell Indenter

Middle Plane Test Table

V-shaped Test Table

Hardness Block 20~30 HRC

Hardness Block 70~85 HR30T

Weight 1, 2, 3, 4, 5

2 x Fuse 2A

4 x Horizontal Regulating Screw


Anti-dust cover

Usage Instruction Manual
