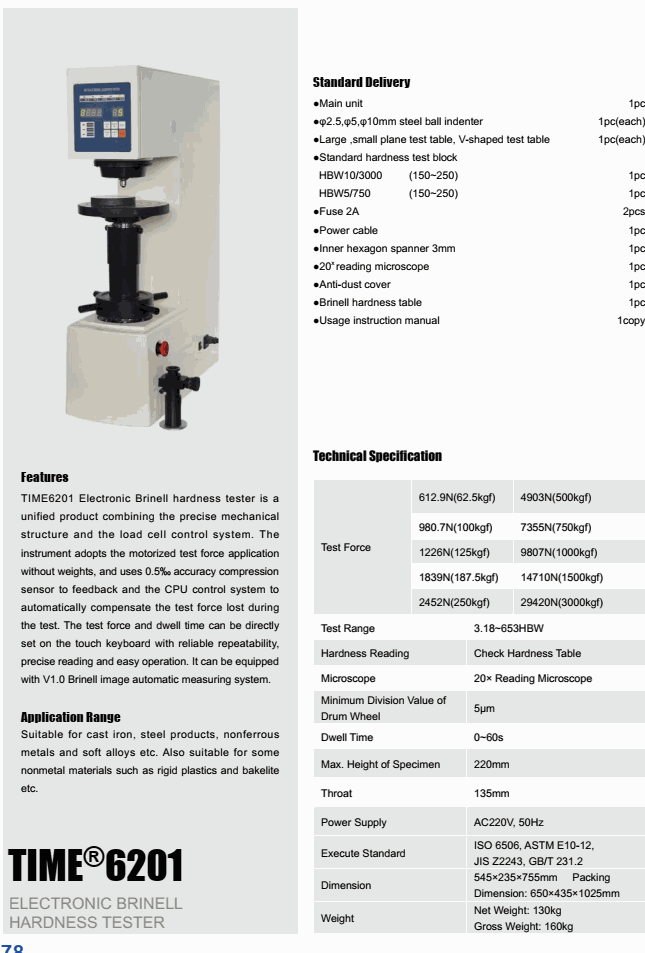

TIME 6201 Electronic Brinell Hardness Tester (3,18 ~ 653HBW)

  • Manufacturer: TIME
    Model: 6201
    Origin: China
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

     Hanoi city: (024) 35.381.269

     Danang city: (0236) 374.77.11

     HCM city: (028) 38.119.636

Test Force:

612.9n(62.5kgf); 4903n(500kgf)

980.7n(100kgf); 7355n(750kgf)

1226n(125kgf); 9807n(1000kgf)

1839n(187.5kgf) 14710n(1500kgf)

2452n(250kgf); 29420n(3000kgf)

Test Range: 3.18~653HBW

Hardness Reading: Check Hardness Table

Microscope: 20× Reading Microscope

Minimum Division Value of Drum Wheel: 5μm

Dwell Time: 0~60s

Max. Height of Specimen: 220mm

Throat: 135mm

Power Supply: AC220V, 50Hz

Execute Standard:

ISO 6506, ASTM E10-12, jIS Z2243, GB/T 231.2

Dimension: 545×235×755mm

Packing Dimension: 650×435×1025mm


net Weight: 130kg

Gross Weight: 160kg

Standard Delivery

Main unit

20× Reading Microscope

Ф2.5mm, Ф5mm, Ф10mm Ball Indenter

Large Plane Test Table

Small Plane Test Table

V-shaped Test Table

Hardness Block 150~250 HBW 10/3000

Hardness Block 150~250 HBW 5/750

2 x Fuse 2A

Power Cable

Anti-dust Cover

Inner Hexagon Spanner 3mm

Brinell Hardness Table

Usage Instruction Manual


Catalog 2019
