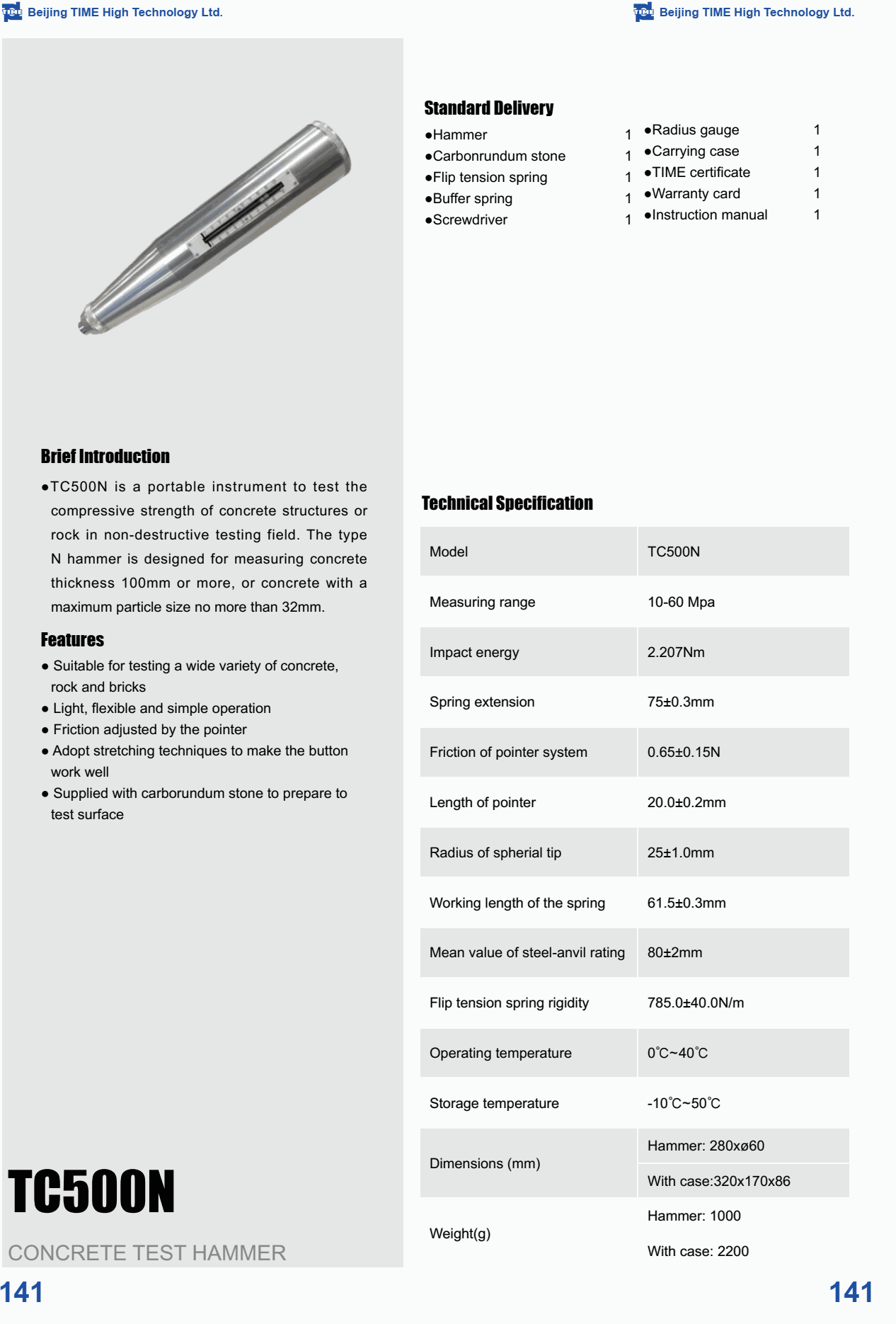

Measuring range: 10-60 Mpa
Impact energy: 2.207nm
Spring extension: 75±0.3mm
Friction of pointer system: 0.65±0.15n
Length of pointer: 20.0±0.2mm
Radius of spherial tip: 25±1.0mm
Working length of the spring: 61.5±0.3mm
Mean value of steel-anvil rating: 80±2mm
Flip tension spring rigidity: 785.0±40.0n/m
Operating temperature: 0℃~ 40℃
Storage temperature: -10℃~ 50℃
Dimensions (mm):
Hammer: 280xø60
With case:320x170x86
Weight(g):
Hammer: 1000
With case: 2200
Standard Delivery
●Hammer
●Carbonrundum stone
●Flip tension spring
●Buffer spring
●Screwdriver
●Radius gauge
●Carrying case
●TIME certificate
●Warranty card
●Instruction manual
