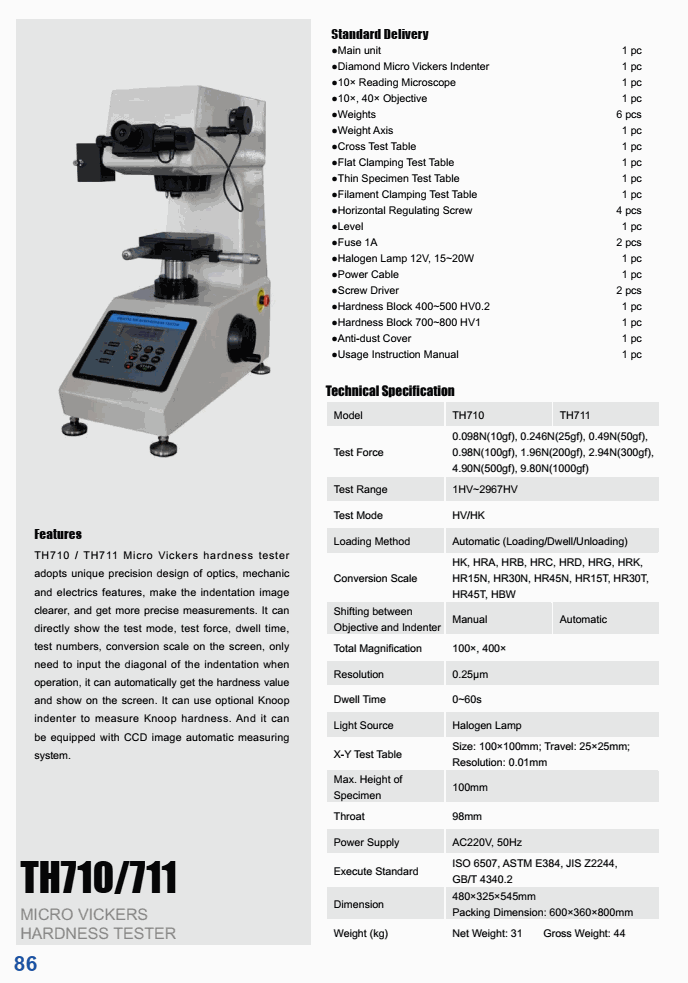

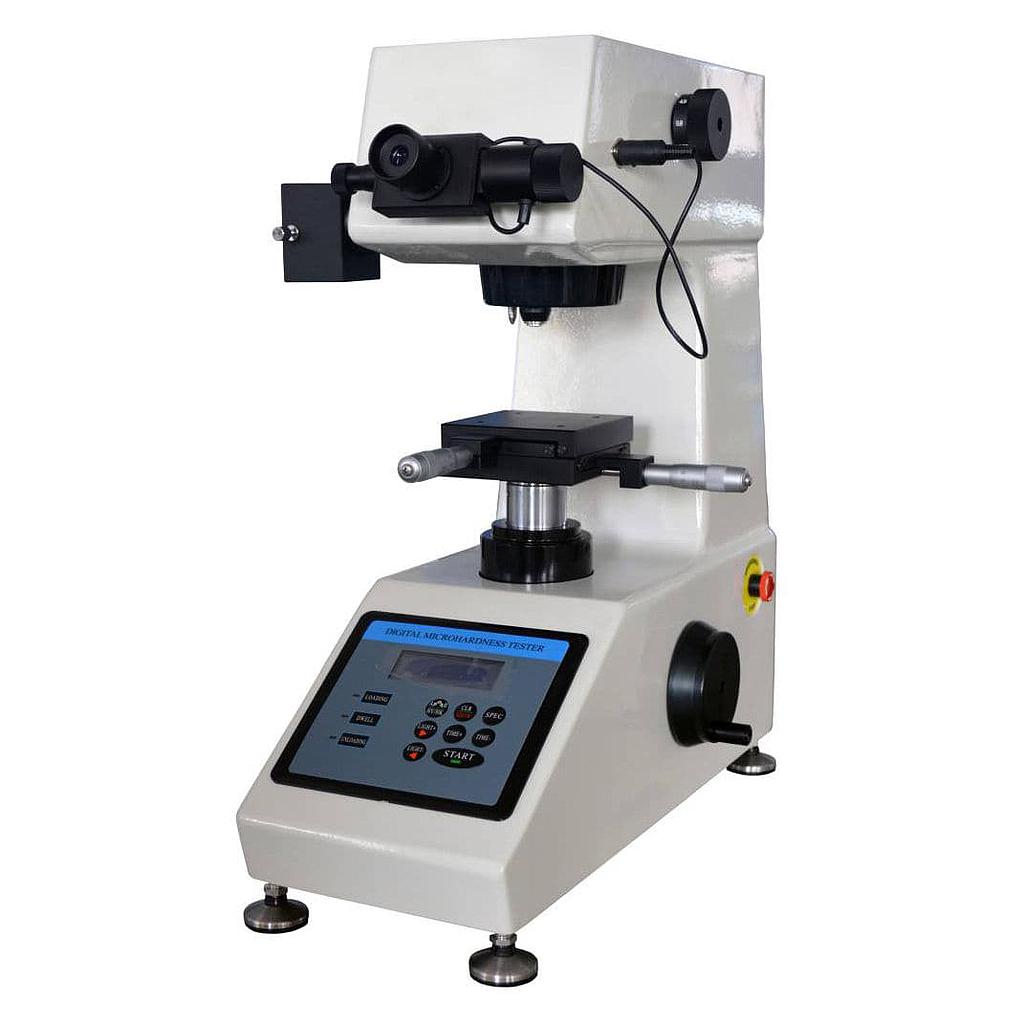

TIME TH711 Micro Vickers Hardness Tester (1HV~2967HV)

Test Force:

0.098n(10gf), 0.246n(25gf), 0.49n(50gf), 0.98n(100gf), 1.96n(200gf), 2.94n(300gf), 4.90n(500gf), 9.80n(1000gf)

Test Range: 1HV~2967HV

Test Mode: HV/HK

Loading Method: Automatic (Loading/Dwell/Unloading)

Conversion Scale:

HK, HRA, HRB, HRC, HRD, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HBW

Shifting between Objective and Indenter:

Automatic

Total Magnification: 100×, 400×

Resolution: 0.25μm

Dwell Time: 0~60s

Light Source: Halogen Lamp

X-y Test Table

Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm

Max. Height of Specimen: 100mm

Throat: 98mm

Power Supply: AC220V, 50Hz

Execute Standard:

ISO 6507, ASTM E384, jIS Z2244, GB/T 4340.2

Dimension:

480×325×545mm

Packing Dimension: 600×360×800mm

Weight (kg)

net Weight: 31

Gross Weight: 44

Standard Delivery

Main unit

Diamond Micro Vickers Indenter

6 x Weights

Cross Test Table

Thin Specimen Test Table

4 x Horizontal Regulating Screw

2 x Fuse 1A

Power Cable

Hardness Block 400~500 HV0.2

Anti-dust Cover

10× Reading Microscope:

10×、40× Objective

Weight Axis

Flat Clamping Test Table

Filament Clamping Test Table

Level

Halogen Lamp 12V、15~20W

2 x Screw Driver

Hardness Block 700~800 HV1

Usage Instruction Manual
