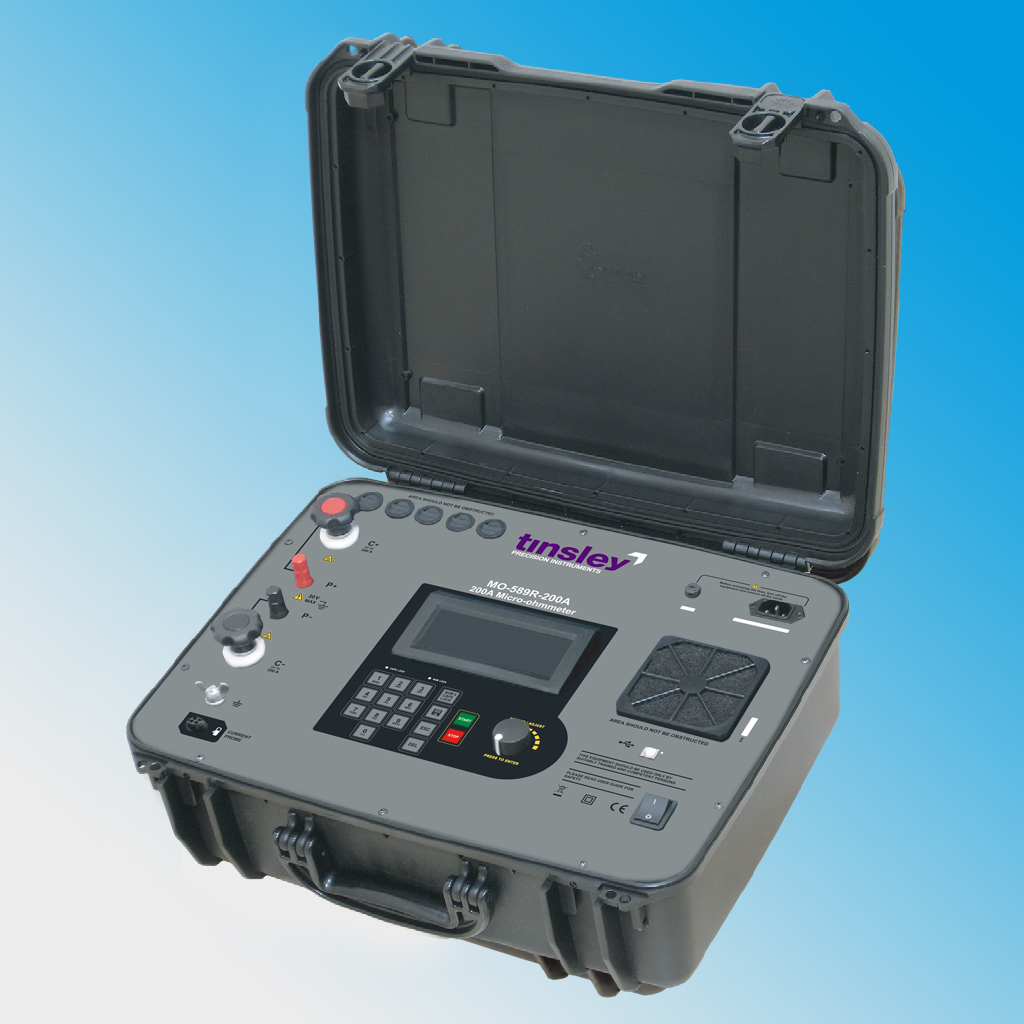

ELECTRICAL
Test current : From 5 A up to 200 A (True DC) The test current can be adjusted in:
Steps of 0.2 A from 5 A to 20 A
Steps of 1 A from 20 A to 200 A
Resistance ranges : 0.1 μΩ up to 2 mΩ (0.1 μΩ resolution)
2 mΩ up to 200 mΩ (10 μΩ resolution)
200 mΩ up to 1 Ω (1 mΩ resolution)
Basic accuracy : ± 1 % of reading from 50 μΩ to 1 Ω
AUXILIARY CLAMP (BSG)
Measurement range : 0.1 Adc to 60 Adc
Accuracy : 1 % + 3 digits
FEATURES
Measuring modes : Manual and automatic
BSG function : Allows to test an object with both sides grounded, providing more safety when performing measurements at substations
Programmable test time : Allows to setup the test duration from 15 seconds up to 120 seconds for test currents from 5 A up to 200 A
Allows unlimited test duration for currents equal or lower than 100 A
Measurement principle : Four-terminal, U/I
Protections : Protections against overheating, over-current and short-circuit
Display : Alphanumerical LCD display, 4 lines / 20 characters (Big Number)
Built-in memory : Memory for storing up to 4000 readings organized by records
COMMUNICATION
Protocol : Modbus
USB : For configuration, control and download the stored values
Bluetooth : For configuration, control and download the stored values
SOFTWARE
Desktop (PC/Notebook) : TLogger software: for remote control, allowing to configure, run tests and generate reports
Android (Smartphone/ Tablet) : Tinsley Remote Control app: for remote control, allowing to configure, run tests and generate reports
STANDARDS
Safety class : IEC 61010-1
ENVIRONMENTAL
IP rating : IP65 (with closed lid)
Operating temperature : 14 °F to 122 °F (-10 °C to 50 °C)
Storage temperature : -13 °F to 158 °F (-25 °C to 70 °C)
Humidity range : 95% RH (non condensing)
POWER SUPPLY
Mains : 100-240 V~
MECHANICAL (OF THE INSTRUMENT)
Weight : Approx. 24.25 lb (11 kg)
Dimensions : 19.76" x 15.51" x 7.48" (502 x 394 x 190 mm)
Accessories
Auxiliary current clamp
Ground cable
Power cord
USB cable
User manual
TLogger software (download)
Tinsley Remote Control App (download)
Case for the accessories
Optional accessories
2 Combined current and potential leads - 19.68 ft (6 meters)
2 Combined current and potential leads - 26.24 ft (8 meters)
2 Combined current and potential leads - 32.80 ft (10 meters)
2 Combined current and potential leads - 39.37 ft (12 meters)
2 Combined current and potential leads - 49.21 ft (15 meters)
