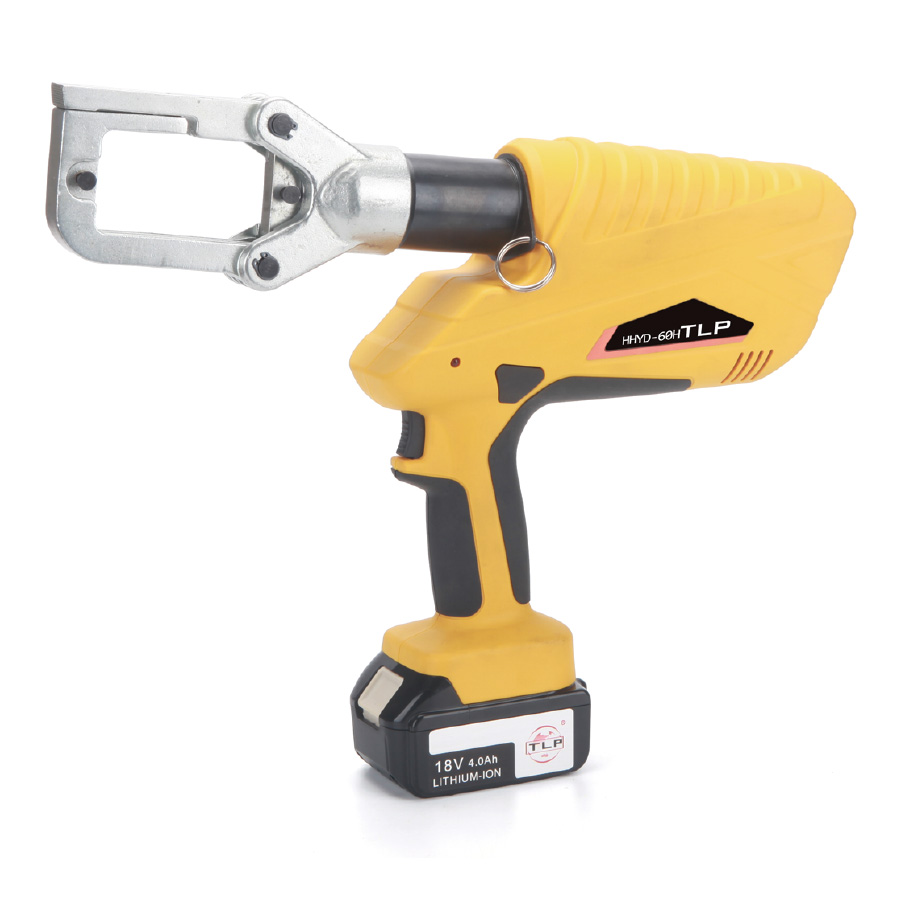

Hydraulic Ram Output: 6.5 Ton
Ram Stroke: 42 mm
Battery Capacity: 90 cutting cycles, 320 crimping cycles, 100 punching cycles
Cutting Range: Ø40 mm (Cu/Al and armoured cable)
Crimping Range: 16 – 300 mm²
Punching Range: Ø22 – Ø60 mm
Battery: 18 V / 4.0 Ah Li-ion
Charging Time: 2 hours
Accessories:
Crimping Dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²
Punching Dies: 22, 27, 34, 43, 49, 60 mm
Qty of Battery: 2 pcs
Charger: 1 pc
Blade: 1 set
Adapter for Crimping: 1 pc
Adapter for Punching: 1 pc
Draw Stud M20 × 1.5: 1 pc
Draw Stud M10 × 1: 1 pc
Spacer: 1 pc
Seals: 1 set
Weight: 21.4 kg
Packing Size: 585 × 500 × 170 mm
Characteristics:
One head for crimping, cutting and punching – one tool for all
Lightweight and well-balanced.
Interchangeable crimping dies, cutting blades and punching adapter.
Only seconds of time is needed to switch crimping, cutting and punching functions.
Characteristics:
●One universal head to complete crimping,cutting and punching jobs.
●Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.
●10000+ cycle service life.
●Ram retracts to original position automatically when operation is complete.
●Manual retraction in case of need.
●Audible buzzer and red LED light in case of error.
●Quick motor stop for higher user safety.
●Powerful 18V Li-ion battery with low battery warning.
●Ergonomic 2-component grip area and balanced center of gravity.
●Sturdy plastic storage box.
