Working pressure: 700bar
Cylinder Capacity @700 bar (Ton): 10
Cylinder Capacity @700 bar (KN): 111
Stroke (mm): 50
Effective area (cm²): 15.9
Oil capacity(cm³): 85

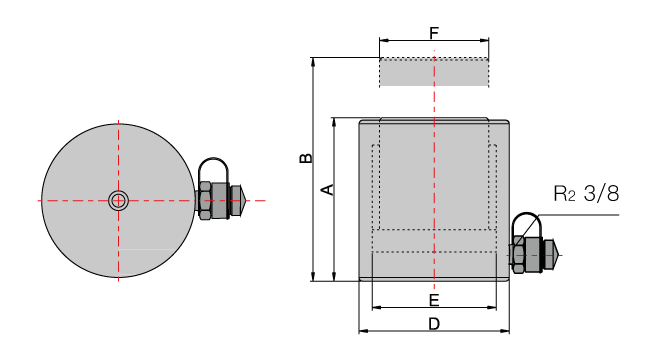

Closed height A (mm): 122
Extended Height B (mm): 172
Outside Dia. D (mm): 68
Inside Dia. E (mm): 45
Piston Rod Dia. F (mm): 36
G.W.(Kg): 3.1
Standard Saddle Dia. J (mm): 27.5
Saddle Protr. From Plgr. K (mm): 2
Handle: No
Recommended pump: HHB-700C

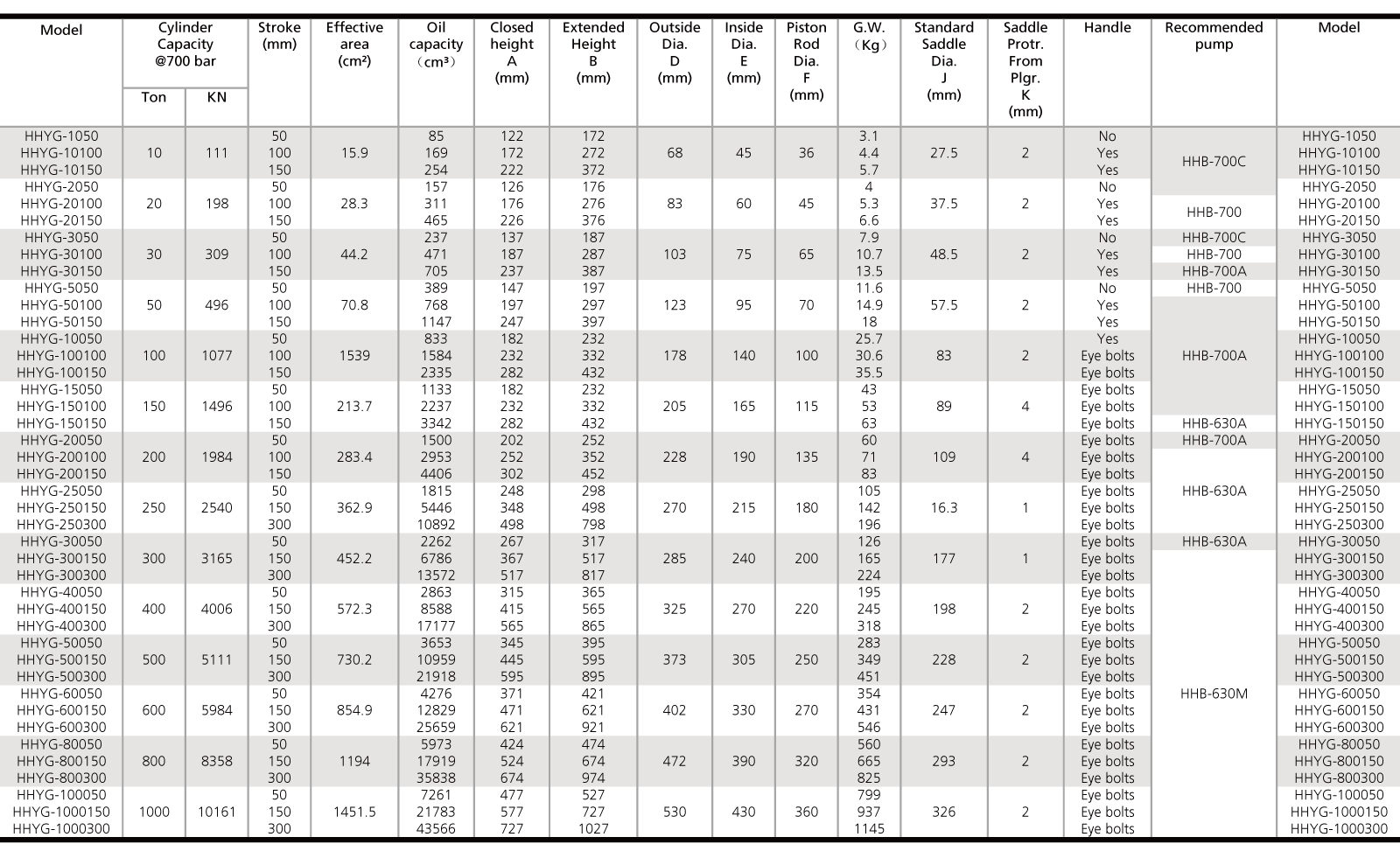

Parameters
