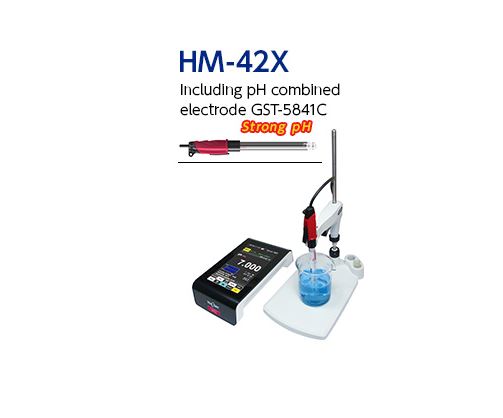

TOA DKK HM-42X Laboratory pH Meter (pH: 0,000 - 14.000)

-Measurement method:

+pH: Glass electrode method

+ORP: Platinum electrode method

+Ion: Ion electrode method

+Temperature: Thermistor resistor

-Display: Touch panel color graphic LCD

-Measurement range:

+pH: pH0.000～14.000

+ｍV （ORP）: -2000.0～2000.0 mV

+Ion: Depends on the sensor used

+Temperature: 0.0～100.0℃; Ion: Depends on the electrode

-Display Range:

+pH: pH-2.000～16.000

+ｍV （ORP）: -2200.0～2200.0 mV

+Ion （Manual/Auto Range Switching） （mol/L selectable）:

Zoom　OFF:

0.0～19.9μg/L

20～199μg/L

0.20～1.99mg/L

2.0～19.9mg/L

20～199mg/L

0.20～1.99g/L

2.0～19.9g/L

20～199g/L

200～1990g/L

Zoom　OＮ:

0.00～19.99μg/L

20.0～199.9μg/L

0.200～1.999mg/L

2.00～19.99mg/L

20.0～199.9mg/L

0.200～1.999g/L

2.00～19.99g/L

20.0～199.9g/L

200～1999g/L

+Temperature: -5.0～110.0℃

-Display resolution switch:

+pH: 0.01pH/0.001pH

+ｍV （ORP）: 1mV

+Ion: 0.0μg/L～1990g/L （Maximum to 3-digits）; 0.00μg/L～1999g/L （Maximum to 4-digits）

-Repeatability (main body):

+pH: ±0.002pH

+ｍV （ORP）: ±0.2mV

+Ion: ±0.5% FS

+Temp.: within ±0.2℃

-pH Temperature Compensation Range:

ATC（Auto Temperature Compensating）: 0～100.0℃

MTC（Manual Temperature Compensating））: 0～100.0℃

-pH Calibration: JIS pH standard solution, US standard solution, customized standard solution Max. 5 point calibration

-Ion Calibration: Max. 5 point calibration

-Temperature Calibration: 1 point calibration

-Performance Guaranteed Temperature, Humidity: 0～45℃　20～85％ or below （condensation-free）

-Data Memory: 1000 data

-Print Function: Optional External Printer EPS-P30 connectable

-mV Shift Function: Yes

-External Input/Output:

+RS-232C Interface: Yes （2ch）

+USB （Host）: yes

+USB （peripheral, Micro）: Yes

+Analog Output:

pH: ±700mV （pH0～14）

ｍV （ORP）: ±1V （0～±2000mV）

Ion: 0～1VFS

Temperature: 0～1V （0～100℃）

Alarm Upper Limit: Open collector

Lower Limit: Open collector

-Option Connection:

+External printer: yes

+Turntable（TTT510/710）: yes

+Electrode Selector （ES-1G）: yes

+Control Box （AC-1V）: yes

-Auto Hold Function: Yes

-Auto Hold Conditions Settings: Yes

-Statistical Calculation Function: Average Value

-Calibration History Creation Function: Max.20 run lots

-Interval Measurement: Yes

-Security Function: yes

-Upper/Lower Limit Output Setting: yes

-Customized Standard Solution Table Creation Function: yes

-Power Source: AC100～240V （Special AC Adapter）

-Power Consumption: Approx.11VA

-Main Unit Dimensions （Excluding Protruding Parts）: Approx.130W×60H×230Dmm

-Main Unit Weight: Approx. 0.8kg

-Inluding:

+ Main unit

+ Sensor Holder: 7430850K

+ Sensor stand (Stand, strut, stopper): 7430860K

+ Tilt stand: 7430870K

+ Sensor attachment (G): 0IB00004

+ pH sensor: GST-5841C

+ Standard solution pH 6.86 500mL: 143F192

+ Standard solution pH 4.01 5mml: 143F191

+ Reference sensor internal solution 50mL

+ AC adapter: 7430880K

+ Power cord: 118C229

+ Ground wire (2m): X0979500

+ Beakers (150mL) (3pcs): 0DE00001

+ Manual

-Tính năng:

+ Màn hình cảm ứng màu hiện đại

+ Có thể lựa chọn đo pH hoặc Ion bằng cách chuyển điện cực

+ Có 2 cổng kết nối (chức năng nhận dạng tự động)

+ Tự động nhận diện PC, bàn xoay, máy in

+ Thiết bị chuẩn USB

+ Chức năng bộ nhớ dữ liệu lớn(2.000 dữ liệu mỗi kênh)

Phạm vi đo lường:

pH: 0,000 - 14.000

ORP: 0,0 - ± 2000 mV

Nhiệt độ: 0-100 ° C

(Điện cực ORP được bán riêng)

Ứng dụng: Sản phảm này được sử dụng để đo độ pH, ORP trong phòng thí nghiệm.
