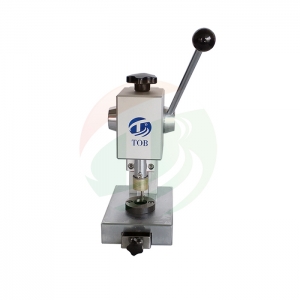

TOB TOB-CP60 Manual Coin Cell Electrode Disc Cutting Machine (8mm-24mm)
Manufacturer: TOB Model: TOB-CP60 Origin: China Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Operating: Manual
Punching size: Standard configuration : φ14mm punching die, φ8-24mm can be chosen
Application Notes
For make CR2016, CR2025 or/and CR2032 coin cell batteries,
we will need at least three cutting dies:
A 15mm
B 16mm
C 19 mm (for separator to fully separate the electrodes)
For CR2450 coin cell:
20mm cutting die can be used for cutting electrode discs and the
23mm cutting die for separator disc.
Punching stroke: 25mm
Punching thickness: 0.005-0.5mm electrode and separator
Advantages
Simple operation
Light weight
Can both cut electrode and separator
Dimension: 110 * 150 * 235mm
Weight: About 6kg
